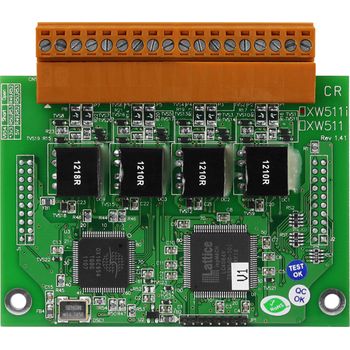

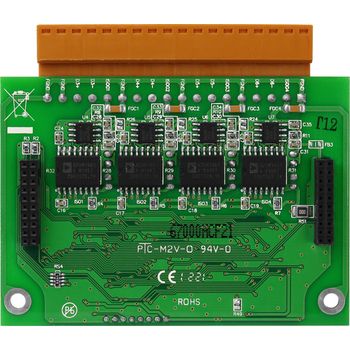

XW511i CR ICP DAS Expansion Boards

features and benefits

XW511i is a RS-485 port expansion board for use with uPAC-50xx and WP-51xx series controllers.
XW511i provides 4 isolated RS-485 serial ports that have 128-byte FIFO buffers and support communication speeds up to 115,200 bps. In the harsh industrial environment, the onboard ESD protection devices can divert this potentially damaging charge away from sensitive circuitry and protect the XW511i from permanent damage.
The serial communication modules are designed for use with intelligent devices like bar code readers, intelligent sensors, instrumentation equipment, computers, and almost any device with an RS-485 port.

• 4-port RS-485 Expansion
• Baud Rate 115200 bps (Max) Supports
• Isolation 2500 Vrms

specifications

Ports4 x RS-485Baud Rate115200 bps Max.ParityNone, Even, Odd, Mark, SpaceData Bit5, 6, 7, 8Stop Bit1, 1.5, 2FIFO Size128 bytesIsolationYes

Power

Consumption	0.8 W

Mechanical

Dimensions (mm)	66 mm x 82 mm x 14 mm (W x L x H)

Environment

Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 °C ~ +75 °C
Humidity	10 ~ 95% RH, Non-condensing
