features and benefits

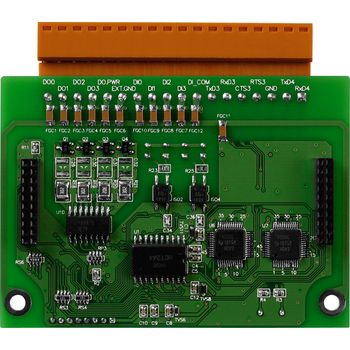

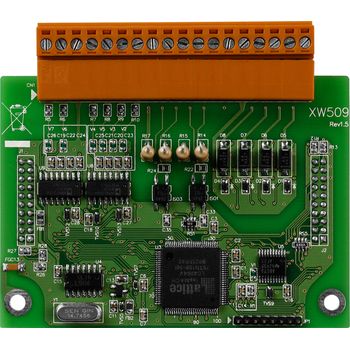

The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series. One PAC can only plug only one XW-board. XW509 is a 2-port Non-Isolation RS-232 with 4-channel Isolation Digital Input and 4-channel Isolation Digital Output XW-board.
- 2-port Non-Isolation 5-wire RS-232
- Baud rates from 1,200 up to 115,200 bps
- 16C550 compatible
- Internal 16-byte Hardware FIFO for each Port
- 4-ch Isolated Digital Input
- Digital Input for Sink Type or Source Type
- 4-ch Isolated Digital Output
- Sink-type Digital Output
specifications
Digital Input| Channels | 4 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | +10 VDC ~ +50 VDC |
|---|
| OFF Voltage Level | +4 VDC Max. |
|---|
| Isolation | 3750 Vrms |
|---|
| Input Impedance | 10 K Ohm |
|---|
| Overvoltage Protection | 60 VDC |
|---|
Digital Output| Channels | 4 |
|---|
| Type | Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | +10 VDC ~ +40 VDC |
|---|
| Load Current | 200 mA/channel at 25 °C |
|---|
| Overload Protection | 1.4 A |
|---|
| Isolation | 3750 Vrms |
|---|
COM Ports| Ports | RS-232 x 2 |
|---|
| Parity | None, Even, Odd, Mark, Space |
|---|
| Data Bit | 5, 6, 7, 8 |
|---|
| Stop Bit | 1, 1.5, 2 |
|---|
| FIFO Size | 16 bytes |
|---|
Power| Consumption | 0.5 W Max. |
|---|
Mechanical| Dimensions (mm) | 66 mm x 82 mm x 17 mm (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 °C ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
