features and benefits
The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series.
One PAC can only plug only one XW-board.

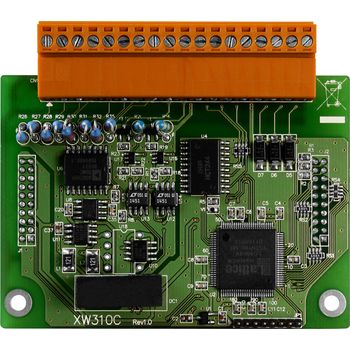

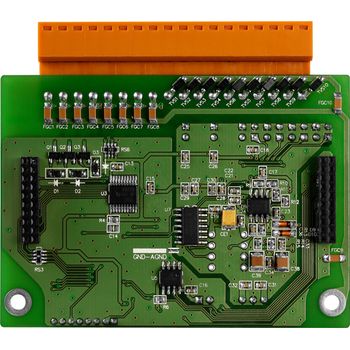

XW310C is a 4-channel Differential/8-channel Single-Ended Analog Input, 2-channel Analog Output, 3-channel Digital Output and 3-channel Digital Input XW-board.
- 4 Differential/8- Single-Ended ch Non-Isolated Current Input
- 2-ch Non-Isolated Current Output
- 3-ch Non-Isolated Digital Input
- 3-ch Non-Isolated Digital Output
specifications
Analog Input| Channels | 04/08/2024 |
|---|
| Range | 0 ~ 20 mA |
|---|
| Resolution | 12-bit |
|---|
| Sampling Rate | 4 KHz |
|---|
| Input Impedance | 125 Ω |
|---|
| Overvoltage Protection | ±30 VDC |
|---|
| Isolation | non-isolated |
|---|
Analog Output| Channels | 2 |
|---|
| Range | 0 ~ 20 mA |
|---|
| Resolution | 12-bit |
|---|
| Voltage Output Capability | 20 mA |
|---|
| Isolation | non-isolated |
|---|
Digital Input| Channels | 3 |
|---|
| Type | Dry Contact |
|---|
| ON Voltage Level | Close to GND |
|---|
| OFF Voltage Level | Open |
|---|
| Overvoltage Protection | 30 VDC |
|---|
Digital Output| Channels | 3 |
|---|
| Type | Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | +10 VDC ~ 40 VDC |
|---|
| Load Current | 200 mA/channel at 25 °C |
|---|
| Overload Protection | 1.4 A |
|---|
Mechanical| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 °C ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
