features and benefits
The XW-board series are for uPAC-5000, LP-51xx, and WP-51xx series.
One PAC can only plug only one XW-board.

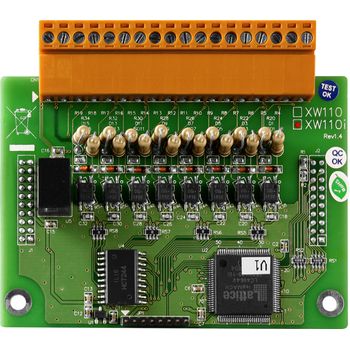

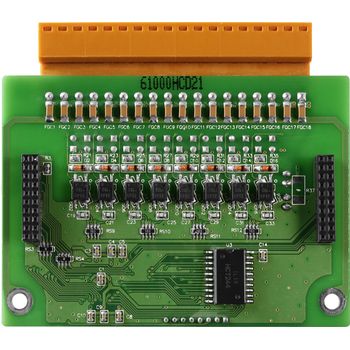

XW110i is a 16-channel Isolation Digital Input XW-board.
- 16-ch Isolated Digital Input
- Digital Input for Sink Type or Source Type
specifications
Digital Input| Channels | 16 |
|---|
| Type | Dry + Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | Dry: Close to GND | Wet: +10 VDC ~ +50 VDC |
|---|
| OFF Voltage Level | Wet: +4 VDC max. | Dry: Open |
|---|
| Isolation | 3750 VDC |
|---|
| Input Impedance | 10 K Ohm |
|---|
| Overvoltage Protection | 60 VDC for Wet Contact |
|---|
Mechanical| Dimensions (mm) | 66 mm x 82 mm x 17 mm (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 °C ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
