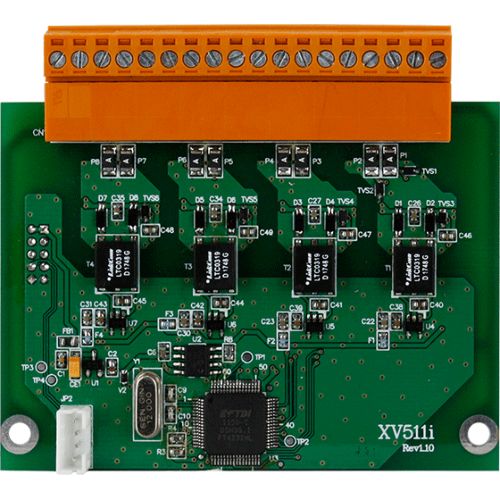

XV511i CR, 4-channel RS-485 I/O Expansion Board
XV511i CR
4-channel RS-485 I/O Expansion Board
Features
4 Port RS-485 Expansion
Baud 921600 bps (MAX) supports
Wide Operating Temperature Range: -25 ~ + 75°C
Introduction
The XV511i Provides 4 Channel Isolation RS-485 Expansion for UA-2241M、WP-2241M-CE7 and LP-2241M.
4KV ESD protection and Isolation RS-485 Port, quickly and easily expand the RS-485 communication interface.
Specifications
COM Ports
Ports: 4 x RS-485
Baud Rate: 921600 bps Max.
Power
Consumption: 0.74 W
Mechanical
Dimensions (mm): 66 mm x 82 mm x 14 mm (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
