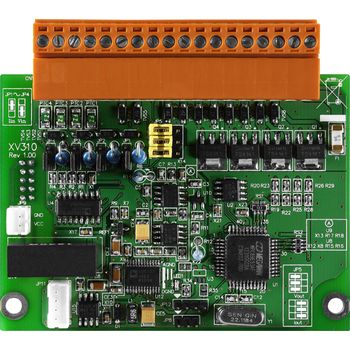

XV310 CR ICP DAS Expansion Boards

The XV310 is a multifunction expansion board that includes 4 analog input channels, 2 analog output channels, 4 digital input channels and 4 digital output channels. It provides a programmable input range on all analog input channels (+/-1 V, +/-2.5 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA or 4 ~ 20 mA), analog output channels are 12- bit at +/-5 V, +/-10 V, 0 ~ 20 mA or 4 ~ 20 mA. Each analog input channel can be configured for an individual range and provides a high overvoltage protection of 120 VDC. Voltage and current inputs/outputs are jumper selectable.+
XV310 CR: Multifunction Expansion Board (RoHS)

• Multifunction (4 AI, 2 AO, 4 DI, 4 DO)
• Individual Channel Configuration
• Jumper Selectable Voltage or Current Input/Output
• Open Wire Detection for Current Output
• Configurable Power-on Value Settings
• Digital Input Channels can be used as 32-bit Counters
• 120 VDC Overvoltage Protection for Analog Input
• 60 VDC Overvoltage Protection for Digital Input
• Overload Protection for Digital Output
• Short-circuit Protection for Digital Output

Analog Input

Channels: 4
Type: ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
Resolution: 16-bit
Sampling Rate: Normal Mode 10 Hz ; Fast Mode 200 Hz
Accuracy: Normal Mode ±0.1 % ; Fast Mode ±0.5 %
Overvoltage Protection: 120 VDC

Analog Output

Channels: 2
Type: 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable)
Resolution: 12-bit
Accuracy: ±0.1 %
Voltage Ouput Capability: 10 V @ 20 mA
Current Load Resistance: 500 Ω

Digital Input

Channels: 4
Type: Dry Contact Source ; Wet Contact -
On Voltage Level: Dry Contact Close to GND ; Wet Contact -
Off Voltage Level: Dry Contact Open ; Wet Contact -
Input Impedance: -
Counters

• Max. Count: 32-bit (0~4,294,967,285)
• Max. Input Frequency: 50 Hz
• Min. Pulse Width: 10 ms

Overvoltage Protection: 60 VDC

Digital Output

Channels: 4
Type: Source
Max. Load Current: 650 mA/channel
Load Voltage: +10 to +40 VDC
Overvoltage Protection: 47 VDC
Overload Protection: Yes
Short Circuit Protection: Yes
Power-on Value: Yes, Programmable

Communication

Interface: RS-232/TTL
Format: N, 8, 1
Baud Rate: 115200 bps
Protocol: Modbus/RTU

Isolation

Intra-module Isolation, Field-to-Logic: 2000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact For Each Terminal ; ±8 kV Air For Random Terminal

Power

Powered from Terminal Block: 5 VDC
Consumption: 1.6 W Max.

Mechanical

Dimensions (W x L x H): 59 mm x 82 mm x 13 mm

Environment

Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Humidity: 10 to 90% RH, Non-condensing
