features and benefits

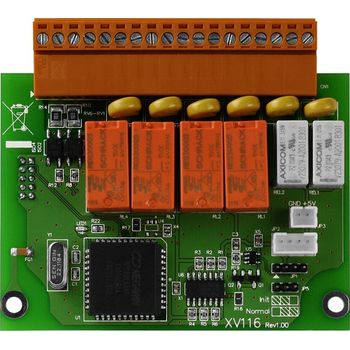

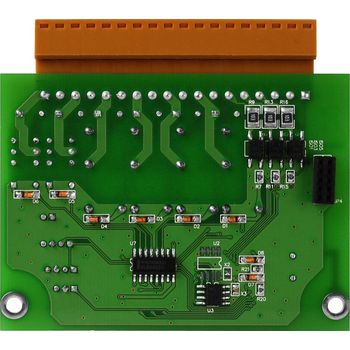

The XV116 provides 5 channels for digital input, as well as 6 Form A relay output channels.
In addition, either sink- or source-type digital input can be selected via wire connections.
All input channels can be used as 32-bit counters.
The XV116 also provides options for configuring power-on digital output va l u e s .
4 kv ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
- 5 Digital Input channels and 6 Relay Output channels
- Sink- and Source-type Digital Input
- Digital Input Channels can be used as 32-bit Counters
- Configurable Power-on Value Settings
- 70 VDC Overvoltage Protection for Digital Input
specifications
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal | ±8 kV Air For Random Terminal |
|---|
Digital Input/Counter| Channels | 5 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | +3.5 ~ +50 VDC |
|---|
| OFF Voltage Level | +1 VDC Max. |
|---|
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
|---|
| Frequency | 50 Hz |
|---|
| Min. Pulse Width | 10 ms |
|---|
| Input Impedance | 10 KΩ, 0.5 W |
|---|
| Overvoltage Protection | 70 VDC |
|---|
Relay Output| Channels | Signal Relay: 2 (Channel 0,1) | Power Relay: 4 (Channel 2 ~ 5) |
|---|
| Type | Signal Relay (Form A) | Power Relay (Form A) |
|---|
| Contact Rating | Signal Relay: 2 A @ 30 VDC, 0.24 A @ 220 VDC, 0.25 A @ 250 VAC | Power Relay: 6 A @ 35 VDC, 6 A @ 240 VAC |
|---|
| Operate Time | Signal Relay: 3 ms (typical) | Power Relay: 5 ms (typical) |
|---|
| Release Time | Signal Relay: 4 ms (typical) | Power Relay: 1 ms (typical) |
|---|
| Electrical Endurance | Signal Relay: 2 x 10^5 ops | Power Relay: 1 x 10^5 ops. |
|---|
| Mechanical Endurance | Signal Relay: 10^8 ops. | Power Relay: 30 x 10^6 ops. |
|---|
| Power on Value | Yes |
|---|
COM Ports| Ports | 1 x RS-232 |
|---|
| Baud Rate | 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | Modbus/RTU |
|---|
Power| Consumption | 1.2 W Max. |
|---|
| Powered from Terminal Block | 5 VDC |
|---|
Mechanical| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +80 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
