features and benefits

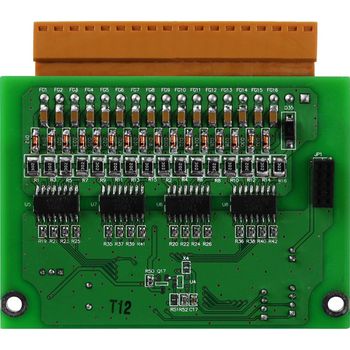

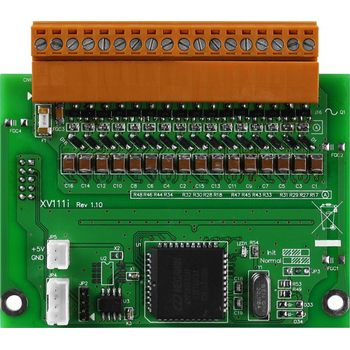

The XV111 provides 16 channels for digital output, each of which features photocouple isolation.
The XV111 supports sink-type output with short circuit protection and provides options for configuring power-on digital output values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
The XV111A has the same specifications as the XV111, except that the output types are reversed.
- Sink-type Digital Output
- Configurable Power-on Value Settings
- Overvoltage Protection for Digital Output
- Short-circuit Protection for Digital Output
specifications
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal | ±8 kV Air For Random Terminal |
|---|
Digital Output| Channels | 16 |
|---|
| Type | Sink |
|---|
| Load Voltage | 3.5 ~ 50 VDC |
|---|
| Load Current | 600 mA/channel |
|---|
| Overvoltage Protection | 60 VDC |
|---|
| Overload Protection | Yes |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Yes, Programmable |
|---|
COM Ports| Ports | 1 x RS-232 |
|---|
| Baud Rate | 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | Modbus/RTU |
|---|
Power| Consumption | 0.2 W Max. |
|---|
| Powered from Terminal Block | 5 VDC |
|---|
Mechanical| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +80 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
