features and benefits

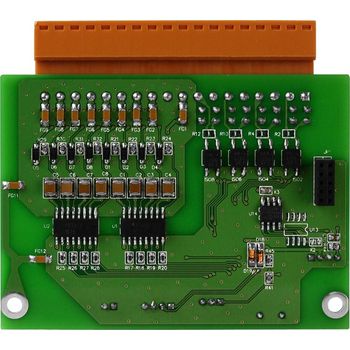

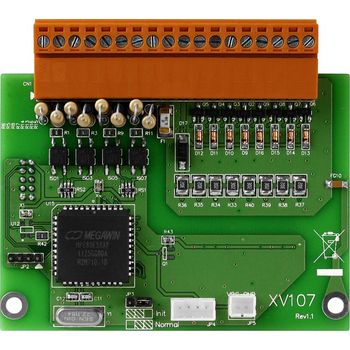

The XV107 provides 8 channels for digital input and 8 channels for digital output, each of which features photocouple isolation.
The XV107 supports sink-type output with short circuit protection, while the input is source-type.
All input channels can be used an 32-bit counters.
There are options for configuring power-on digital output values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
The XV107A has the same specifications as the XV107, except that the input and output types are reversed.
- Sink-type Digital Output
- Source-type Digital Input
- All Input Channels Can Be Used As 32-bit Counters
- Configurable Power-on Value Settings
- 70 VDC Overvoltage Protection for Digital Input
- Overload Protection for Digital Output
- Short-circuit Protection for Digital Output
specifications
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal | ±8 kV Air For Random Terminal |
|---|
Digital Input/Counter| Channels | 8 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Source |
|---|
| ON Voltage Level | +3.5 ~ 50 VDC |
|---|
| OFF Voltage Level | +1 VDC Max. |
|---|
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
|---|
| Frequency | 50 Hz |
|---|
| Min. Pulse Width | 10 ms |
|---|
| Input Impedance | 10 KΩ, 0.5 W |
|---|
| Overvoltage Protection | 70 VDC |
|---|
Digital Output| Channels | 8 |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | 3.5 ~ 50 VDC |
|---|
| Load Current | 700 mA/channel |
|---|
| Overvoltage Protection | 60 VDC |
|---|
| Overload Protection | Yes |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Yes, Programmable |
|---|
COM Ports| Ports | 1 x RS-232 |
|---|
| Baud Rate | 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | Modbus/RTU |
|---|
Power| Consumption | 0.15 W Max. |
|---|
| Powered from Terminal Block | 5 VDC |
|---|
Mechanical| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +80 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
