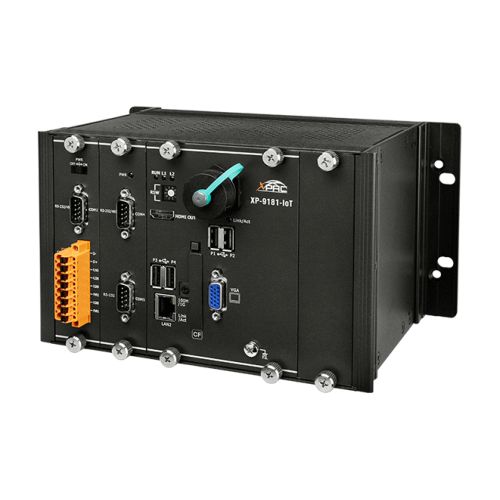

XP-9181-IoT CR, 1-slot Metal Standard PAC with E3845 CPU and Windows 10 IoT
XP-9181-IoT CR
1-slot Metal Standard PAC with E3845 CPU and Windows 10 IoT
Free Shipping
Features
• Windows 10 IoT Enterprise (64-bit)
• Intel® Atom™ E3845 1.91 GHz
• 4 GB DDR3 SDRAM
• 64 GB SSD
• VGA and HDMI Port Output
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
Introduction
The XP-9181-IoT are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interfaces. Local I/O slots are available for use with our I-9K and I-97K series I/O modules. And remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.
Specifications
Software
OS: Windows 10 IoT Enterprise (64-bit)
Service: IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support: .Net Framework 3.5 ~ 4.8
Multilanguage Support: English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK: Dll for VC, Dll for Visual Studio.Net
Main Unit
CPU: E3845, 1.91 GHz, 64-bit quad core
64-bit Hardware Serial Number: Yes
System Memory: 4 GB DDR3 SDRAM, 64 GB Flash
Storage: 64 GB SSD, 32 GB CF card
Non-Volatile Memory: 128 KB MRAM, 16 KB EEPROM
Real Time Clock: Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer: Dual Watchdog Timer
Display
Signal: VGA, HDMI
Resolution: VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
HDMI 2560 x 1600 @ 24bpp
LED Indicators
Status: 1 x System, 2 x Power, 2 x Programmable
I/O Expansion
I/O Type: I-9K, I-97K series
Slots: 1
COM Ports
Ports: 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated)
HMI
Buzzer: Yes
Rotary Switch: 1 x 10 Position (0 ~ 9)
Ethernet
Ports: 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports: 4 x USB 2.0
Power
Input Range: +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs: Yes
Consumption: 18.5 W
Mechanical
Dimensions (mm): 239 x 164 x 133 (W x L x H)
Installation: DIN-Rail, Wall mounting
Environment
Operating Temperature: -25 ~ +60 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90 % RH, Non-condensing
