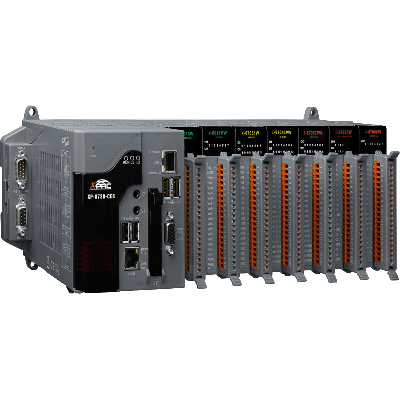

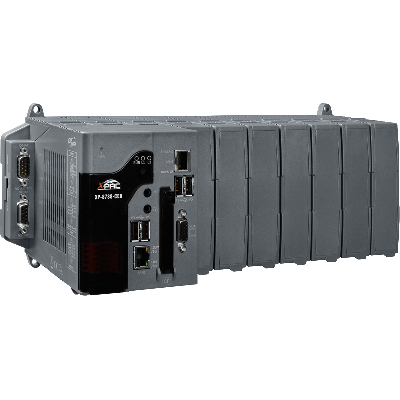

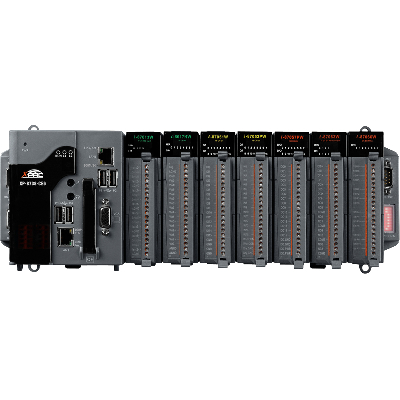

XP-8738-CE6 CR
7-slot Win-GRAF Based PAC with x86 CPU and WinCE 6.0
- x86 CPU, 1.0 GHz, dual-core
- Windows CE 6.0
- Embedded Win-GRAF SoftLogic (IEC 61131-3)
- Hard Real-Time Capability
- VGA Port Output
- Modbus RTU/TCP (Master, Slave)
- Support eLogger HMI
- Redundant Power Inputs
- Support Dual PAC Redundant System
- Operating Temperature: -25 ~ +75°C
Introduction
The Win-GRAF XPAC-8000-CE6 Series (XP-8038-CE6/XP-8138-CE6/XP-8338-CE6/XP-8738-CE6) is the new generation WinCE 6.0 based Win-GRAF XPAC-CE6 (Programmable Automation Controller) from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series)
The benefits of running Windows CE 6.0 on a XPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.
Specifications
System Software
OS: Windows CE 6.0
.Net Compact Framework: 3.5
Embedded Service: FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio .Net 2005/2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Japanese, Simplified Chinese, Traditional Chinese
Development Software
Win-GRAF Software: Win-GRAF: IEC 61131-3 standard
Languages: LD, ST, FBD, SFC, IL
Max. Code Size: 2 MB
Scan Time: 3 ~ 15 ms for normal program
15 ~ 50 ms (or more) for complex or large program
Non-Win-GRAF: Options: VS.NET 2008 (VB.NET, C#.NET, C)
CPU Module
CPU: x86 CPU, 1.0 GHz, dual-core
System Memory: 2 GB DDR3
Non-volatile Memory, MRAM: 512 KB (retain memory without battery support)
Flash: 32 GB
EEPROM: 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
CF Card: 8 GB (support up to 32 GB)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator: 2
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
Rotary Switch: Yes (0 ~ 9)
DIP Switch: Yes (8 bits)
Audio: Microphone-In and Earphone-Out
VGA & Communication Ports
VGA: Yes, (resolution: 1024 x 768, 800 x 600, 640 x480)
Ethernet: RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 4
COM 1: Internal communication with the high profile I-87K series modules in slots
COM 2: RS-232 (RxD, TxD and GND); non-isolated
COM 3: RS-485: D2+, D2-; self-tuner ASIC inside
Isolation: 3000 VDC
COM 4: RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number: 7
Note: For High Profile I-8K and I-87K Modules Only
Mechanical
Dimensions (W x L x H): 355 x 132 x 125 mm
Installation: DIN-Rail or Wall Mounting
Environmental
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)
Power
Input Range: +10 ~ +30 VDc
Isolation: 1 kV
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity: 35 W
Consumption: 18 W (0.75 A @ 24 VDC)
