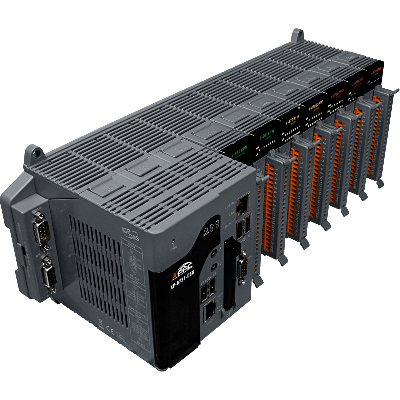

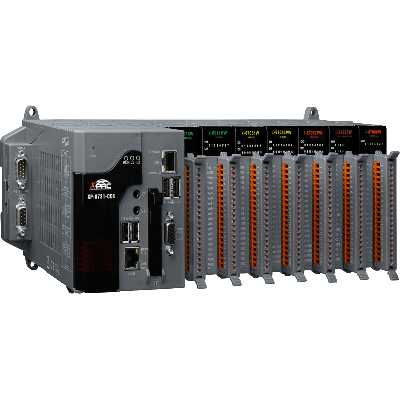

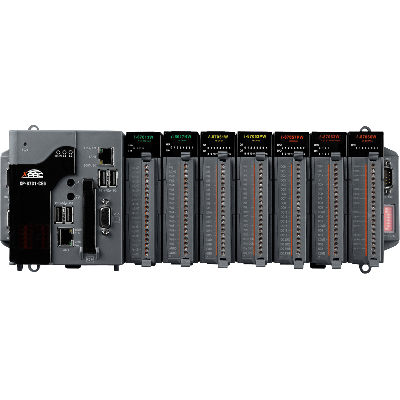

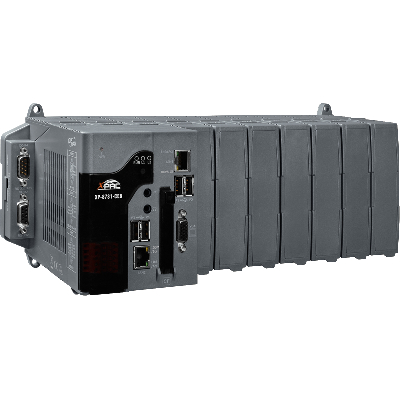

XP-8731-CE6 CR ICP DAS Windows CE6 Based


XP-8731-CE6 CR

7-slot Standard PAC with x86 CPU and WinCE 6.0



€ 1.308,35

(VAT excluded)

€ 1.596,19(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.596,19

Availability: 15 business days

SKU: 110748

Model: XP-8731-CE6 CR

Need Help?

  • Windows CE 6.0
  • Hard Real-Time Capability
  • x86 CPU, 1.0 GHz, dual-core
  • Audio with Microphone-In and Earphone-Out
  • VGA Port Output
  • Support eLogger HMI
  • High Performance PC Power, Open System
  • Redundant Power Inputs
  • Operatiog Temperature: -25 ~ +75 °C


XP-8x31-CE6 Series is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped with a x86 CPU (1 GHz) dual-core, various connectivity (VGA, USB, Ethernet, RS-232/485) and 0/1/3/7 I/O slot(s) for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The benefits of running Windows CE 6.0 on XPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC is also capable of running PC-based control software such as Visual Basic .NET, Visual C#,…. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.
For software copy protection, programmers can design software based on the 64-bit hardware serial number for making software copy protected.


System Software
OS: Windows CE 6.0
.Net Compact Framework: 3.5
Embedded Service: FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio .NET 2005/2008
Multi-Language Support: English, German, French, Spanish, Russian, Italian, Japanese, Simplified Chinese, Traditional Chinese
CPU Module
CPU: x86 CPU, 1.0 GHz, dual-core
System Memory: 2 GB DDR3
MRAM: Non-volatile Memory, 512 KB (retain memory without battery support)
Flash: 32 GB
CF Card: 8 GB (support up to 32 GB)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
LED Indicator: 2
Hardware Serial Number: Yes, 64-bit Hardware Serial Number for Software Copy Protection
Dual Watchdog Timers: Yes
Rotary Switch: Yes (0 ~ 9)
DIP Switch: Yes (8 bits)
Audio: Microphone-In and Earphone-Out
VGA & Communication Ports
VGA: Yes, (resolution: 1024 x 768, 800 x 600, 640 x 480)
Ethernet (Giga bit): RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 4
COM 1: Internal communication with the high profile I-87K series modules in slots
COM 2: RS-232 (RxD, TxD and GND); non-isolated
COM 3: RS-485 (Data+, Data-) with internal self-tuner ASIC; 3000 VDC isolated
COM 4: RS-232/RS-485 (RxD, TxD, CTS, RTS, GND for RS-232, Data+, Data- for RS-485); non-isolated
COM 5: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number: 7 slots
For High Profile I-8K and I-87K Modules Only
Dimensions (W x L x H): 355 x 132 x 125 mm
Installation: DIN-Rail or Wall Mounting
Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Ambient Relative Humidity: 10 to 90% RH, non-condensing
Input Range: +10 to +30 VDC
Isolation: 1 kV
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity: 35 W
Consumption: 18 W (0.75 A @ 24 VDC)
