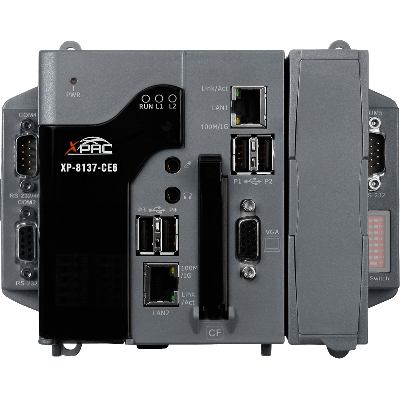

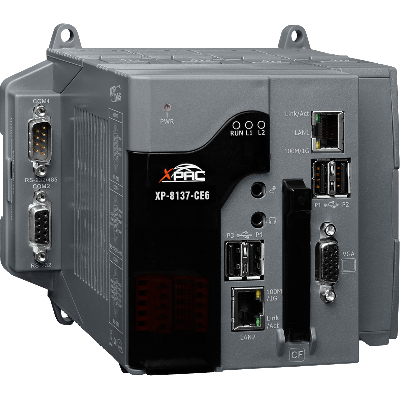

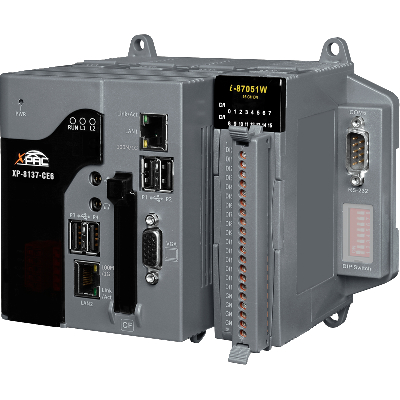

XP-8137-CE6 CR ICP DAS Windows CE6 Based


XP-8137-CE6 CR

1-slot ISaGRAF Based PAC with x86 CPU and WinCE 6.0



€ 1.286,54

(VAT excluded)

€ 1.569,58(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.569,58

Availability: 15 business days

SKU: 110822

Model: XP-8137-CE6 CR

Need Help?

  • x86 CPU, 1.0 GHz, dual-core
  • Windows CE 6.0
  • Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
  • Hard Real-Time Capability
  • VGA Port Output
  • Modbus RTU/TCP (Master, Slave)
  • Support eLogger HMI
  • Support Motion Control: Using I-8094F/8094/8092F
  • Redundant Power Inputs
  • Operating Temperature: -25 ~ +75 °C


The XP-8x37-CE6 Series (XP-8037-CE6/XP-8137-CE6/8337-CE6/8737-CE6) is the new generation ISaGRAF PAC frim ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows Embedded CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).
The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capabilities, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. XPAC devices are also capable of running ISaGRAF and PC-based control software, such as Visual Basic .NET, Visual C#, etc., providing all of the best features of both traditional PLCs and Windows capable PCs.
   Major advantage compared with the WP-8xx7 and VP-2xW7:
    ‧ The USB-mouse operations and Ethernet communication of the XP-8x37-CE6 are more effective
       (consume less CPU loading) than the WP-8xx7 and VP-2xW7.
    ‧ The memory size (Flash and SDRAM) of the XP-8x37-CE6 is much more than the WP-8xx7 and VP-2xW7.


System Software
OS: Windows CE 6.0
.Net Compact Framework: 3.5
Embedded Service: FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio .Net 2005/2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Japanese, Simplified Chinese, Traditional Chinese
Development Software
ISaGRAF Software: ISaGRAF Ver.3: IEC 61131-3 standard

Languages: LD, ST, FBD, SFC, IL & FC

     Max. Code Size: 2 MB
                 Scan Time: 3 ~ 15 ms for normal program

            15 ~ 50 ms (or more) for complex or large program
Non-ISaGRAF: Options: VS.NET 2005/2008 (VB.NET, C#.NET)
CPU Module
CPU: x86 CPU, 1.0 GHz, dual-core
System Memory: 2 GB DDR3
Non-volatile Memory, MRAM: 512 KB (retain memory without battery support)
Flash: 32 GB
EEPROM: 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
CF Card: 8 GB (support up to 32 GB)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator: 2
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
Rotary Switch: Yes (0 ~ 9)
DIP Switch: Yes (8 bits)
Audio: Microphone-In and Earphone-Out
VGA & Communication Ports
VGA: Yes, (resolution: 1024 x 768, 800 x 600, 640 x480)
Ethernet: RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 4
COM 1: Internal communication with the high profi le I-87K series modules in slots
COM 2: RS-232 (RxD, TxD and GND); non-isolated
COM 3: RS-485 (D2+, D2-) with internal self-tuner ASIC; 3000 VDC isolated
COM 4: RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485);
COM 5: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number: 1
Note: For High Profile I-8K and I-87K Modules Only
Dimensions (W x L x H): 169 x 132 x 125 (mm)
Installation: DIN-Rail or Wall Mounting
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)
Input Range: +10 ~ +30 VDc
Isolation: 1 kV
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity: 20 W
Consumption: 16.6 W (0.69 A @ 24 VDC)
