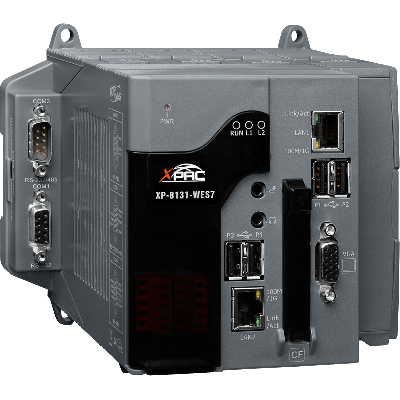

XP-8131-WES7 CR
1-slot Standard PAC with x86 CPU and WES7
- Windows Embedded Standard 7
- x86 CPU, 1 GHz, dual-core
- Audio with Microphone-In and Earphone-Out
- VGA Port Output
- Support eLogger HMI
- High Performance PC Power, Open System
- Redundant Power Inputs
- Operating Temperature: -25 ~ +75 °C
INTRODUCTION
The XP-8000-WES7 series are WES7 based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with a x86 (1 GHz, dual-core) CPU, 0/1/3/7 I/O expansion slot(s) and a variety of connectives including dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.
SPECIFICATIONS
System Software
OS: Microsoft Windows Embedded Standard 7
.Net Compact Framework: 4.5
Embedded Service: IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
SDK Provided: Dll for VC, Dll for Visual Studio.Net
Multi-Language Support: English, German, French, Spanish, Russian, Italian, Portuguese, Korean, Japanese, Simplified Chinese, Traditional Chinese
CPU Module
CPU: x86 CPU, 1 GHz, dual-core
SDRAM: 2 GB DDR3 SDRAM
Non-volatile Memory, MRAM: 512 KB (retain memory without battery support)
Flash: 32 GB
EEPROM: 16 KB
Data Retention: 40 years; 1,000,000 erase/write cycles
CF Card: CF socket with one 16 GB CF card (support up to 32 GB)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator: 2
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
Rotary Switch: Yes (0 ~ 9)
DIP Switch: Yes (8 bits)
Audio: Microphone-In and Earphone-Out
VGA & Communication Ports
VGA: Yes, (resolution: 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480)
Ethernet (Giga bit): RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 4
COM 1: Internal communication with the high profile I-87K series modules in slots
COM 2: RS-232 (RxD, TxD and GND); non-isolated
COM 3: RS-485 (Data+, Data-) with internal self-tuner ASIC; 3000 VDC isolated
COM 4: RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number: 1 slot
For High Profile I-8K and I-87K Modules Only
Mechanical
Dimensions (W x L x H): 169 x 132 x 125 mm
Installation: DIN-Rail or Wall Mounting
Environmental
Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Ambient Relative Humidity: 10 to 90% RH, non-condensing
Power
Input Range: +10 to +30 VDC
Isolation: 1 kV
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity: 25 W
Consumption: 16.6 W (0.69 A @ 24 VDC)
