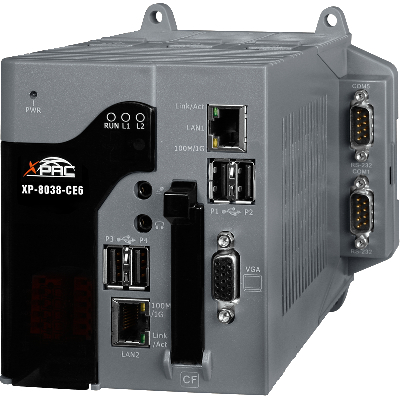

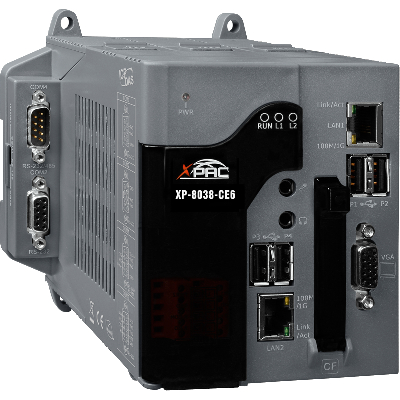

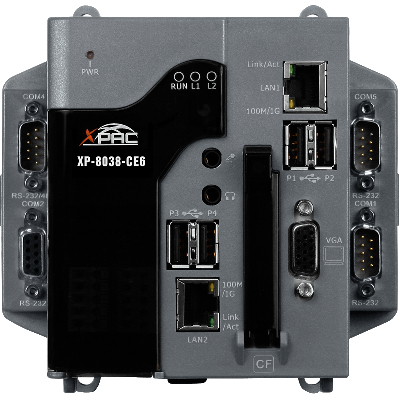

XP-8038-CE6 CR ICP DAS Windows CE6 Based

XP-8038-CE6 CR ICP DAS

XP-8038-CE6 CR

0-slot Win-GRAF Based PAC with x86 CPU and WinCE 6.0

Quantity:

Price

€ 1.342,96

(VAT excluded)

€ 1.638,41(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.638,41

Availability: 15 business days

SKU: 110817

Model: XP-8038-CE6 CR

Need Help?


  • x86 CPU, 1.0 GHz, dual-core
  • Windows CE 6.0
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • Hard Real-Time Capability
  • VGA Port Output
  • Modbus RTU/TCP (Master, Slave)
  • Support eLogger HMI
  • Redundant Power Inputs
  • Support Dual PAC Redundant System
  • Operating Temperature: -25 ~ +75°C

Introduction

The Win-GRAF XPAC-8000-CE6 Series (XP-8038-CE6/XP-8138-CE6/XP-8338-CE6/XP-8738-CE6) is the new generation WinCE 6.0 based Win-GRAF XPAC-CE6 (Programmable Automation Controller) from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series)

The benefits of running Windows CE 6.0 on a XPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.

Specifications

System Software
OS: Windows CE 6.0
.Net Compact Framework: 3.5
Embedded Service: FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio .Net 2005/2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Japanese, Simplified Chinese, Traditional Chinese

Development Software
Win-GRAF Software:   Win-GRAF: IEC 61131-3 standard

Languages: LD, ST, FBD, SFC, IL

Max. Code Size: 2 MB

Scan Time: 3 ~ 15 ms for normal program

15 ~ 50 ms (or more) for complex or large program

Non-Win-GRAF: Options: VS.NET 2008 (VB.NET, C#.NET, C)

CPU Module
CPU: x86 CPU, 1.0 GHz, dual-core
System Memory: 2 GB DDR3
Non-volatile Memory, MRAM: 512 KB (retain memory without battery support)
Flash: 32 GB
EEPROM: 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
CF Card: 8 GB (support up to 32 GB)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator: 2
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
Rotary Switch: Yes (0 ~ 9)
DIP Switch: -
Audio: Microphone-In and Earphone-Out

VGA & Communication Ports
VGA: Yes, (resolution: 1024 x 768, 800 x 600, 640 x480)
Ethernet: RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 4
COM 1: RS-232 (RxD, TxD and GND); non-isolated
COM 2: RS-232 (RxD, TxD and GND); non-isolated
COM 3: RS-485: D2+, D2-; self-tuner ASIC inside
          Isolation: 3000 VDC

COM 4: RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated

I/O Expansion Slots
Slot Number: 0
Note: For High Profile I-8K and I-87K Modules Only

Mechanical
Dimensions (W x L x H): 137 x 132 x 125 mm
Installation: DIN-Rail or Wall Mounting

Environmental
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)

Power
Input Range: +10 ~ +30 VDc
Isolation: 1 kV
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity: 20 W
Consumption: 12 W (0.5 A @ 24 VDC)
