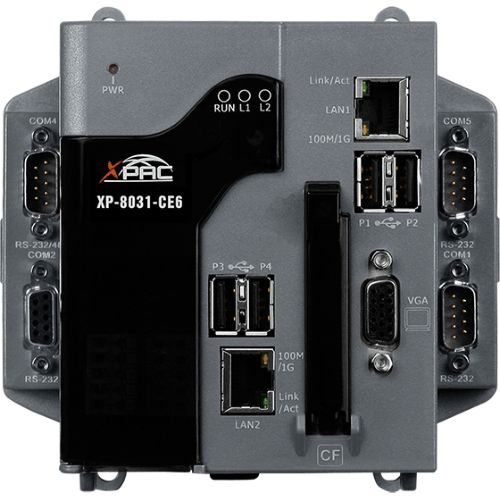

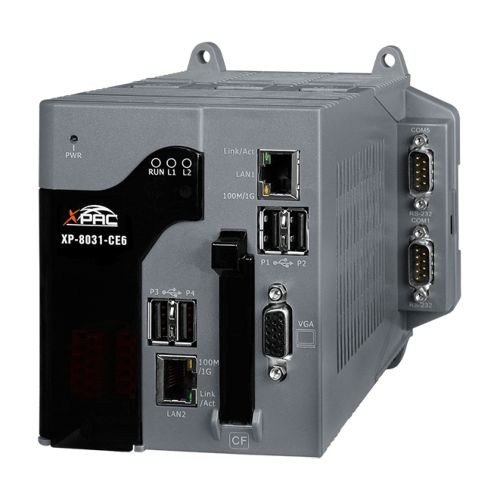

XP-8031-CE6 CR, Standard PAC with x86 CPU and WinCE 6.0
XP-8031-CE6 CR
Standard PAC with x86 CPU and WinCE 6.0
Free Shipping
Features
• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 2 GB DDR3 and 32 GB Flash
‣ 16 KB EEPROM for data retention
‣ 512 MB MRAM for data retention
‣ 1 x CF socket with one CF card
• Various Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Ports
‣ 5 x Serial Ports (RS-232/485)
‣ 4 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 4 x LED Indicators
• Built-In dual Watchdog Timer
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C
Introduction
XP-8031-CE6 Series is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped with a x86 CPU (1 GHz) dual-core, various connectivity (VGA, USB, Ethernet, RS-232/485) and serial I/O modules (high profile I-87K series). The benefits of running Windows CE 6.0 on XP-8031-CE6 include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XP-8031-CE6 is also capable of running PC-based control software such as Visual Basic .NET, Visual C#,…. etc. It has all of the best features of both traditional PLCs and Windows capable PCs. For software copy protection, programmers can design software based on the 64-bit hardware serial number for making software copy protected.
Specifications
Software
OS: Windows CE 6.0
Service: FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
Framework Support: .Net Compact Framework 3.5
Multilanguage Support: English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK: Dll for Visual Studio .NET 2005/2008
Main Unit
CPU: x86 CPU, 1 GHz, dual-core
64-bit Hardware Serial Number: Yes
System Memory: 2 GB DDR3 SDRAM
Storage: 32 GB Flash, 8 GB CF card (up to 32 GB)
Non-Volatile Memory: 16 KB EEPROM, 512 KB MRAM
Real Time Clock: Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer: Dual Watchdog Timer
Display
Signal: VGA
Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
LED Indicators
Status: 1 x System, 1 x Power, 2 x Programmable
COM Ports
Ports: 3 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485
HMI
Buzzer: Yes
Rotary Switch: 1 x 10 Position (0 ~ 9)
Ethernet
Ports: 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports: 4 x USB 2.0
Power
Input Range: +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs: Yes
Consumption: 12.0 W
Mechanical
Casing: Plastic
Dimensions (mm): 137 x 132 x 125 (W x L x H)
Installation: DIN-Rail, Wall mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90 % RH, Non-condensing
