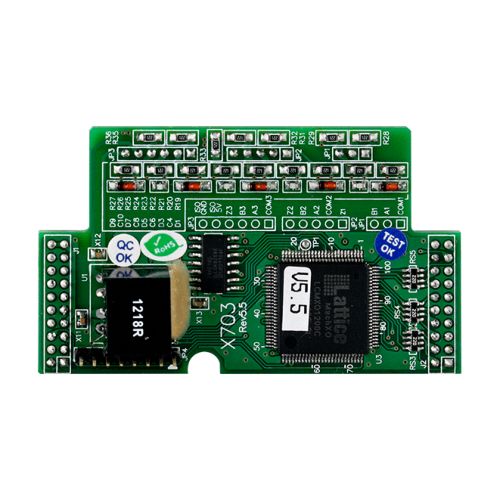

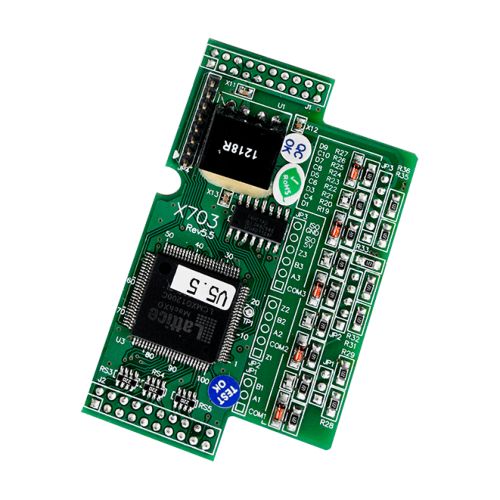

X703 CR, 3-axis Encoder Module
X703 CR
3-axis Encoder Module
Introduction
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X703 is a 3-axis Encoder X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG, uPAC-7186EG and uPAC-7186EX.
Specifications
Digital Input/Counter
Channels: 3
Frequency: 1 MHz
Counter/Frequency/Encoder Input
Channels: 3
Encoder Mode: Quadrant, CW/CCW, Pulse/Direction
Counter/Encoder Bits: 32-bit
Max. Counter/Frequency: 1 MHz
ON Voltage Level: 3.5 V ~ 5 V
OFF Voltage Level: 0 V ~ 2 V
Isolated Voltage Output: +5V, 100 mA (max)
Mechanical
Dimensions (mm): 38 mm x 64 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
