X608 CR, 512 KB BBSRAM
X608 CR
512 KB BBSRAM
Introduction
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.

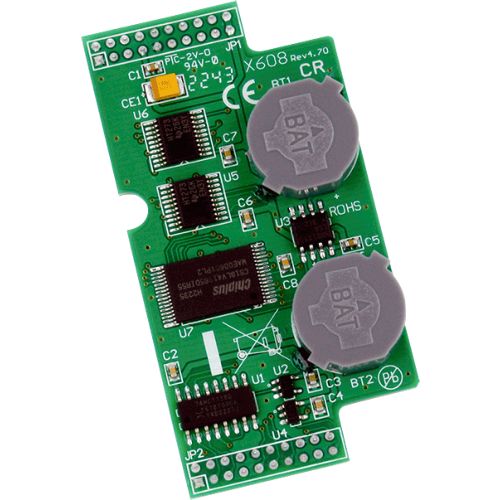

X608 is a 512 KB BBSRAM X-board for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
Specifications
Memory
Type: SRAM
Size: 512K Bytes
Battery Backup: Yes (9 years)
Mechanical
Dimensions (mm): 38 mm x 64 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
