X603 CR, 256 MB NAND Flash (RoHS)
X603 CR
256 MB NAND Flash (RoHS)
features and benefits
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.

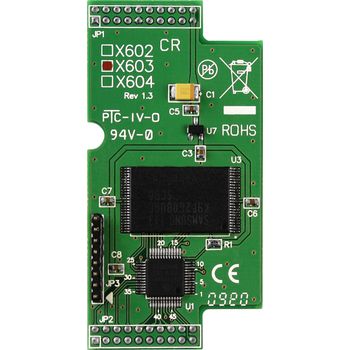

X603 is a 256 MB NAND Flash X-board for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
(Not include uPAC-7186EX-FD)
| Size | 256 M Bytes |
|---|
| Dimensions (mm) | 38 mm x 64 mm |
|---|
| Operating Temperature | -25°C ~ +75°C |
|---|---|
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
