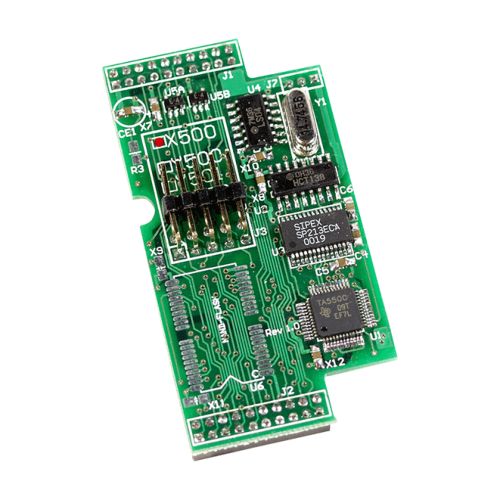

X500 CR, 1-Port RS-232 (9-Pin)
X500 CR
1-Port RS-232 (9-Pin)
Features
1-Port Non-Isolation 9-wire RS-232
Introduction
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X500 is a 1-Port Non-Isolation 9-wire RS-232 X-board for I-7188XC. (Without Case)
Specifications
COM Ports
Ports: 1 x 9-wire RS-232 (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND without case, for I-7188XA/I-7188XC )/
1 x 3-wire RS-232 (TxD, RxD, GND with case, for I-7188XC)
Baud Rate: 115200 bps Max.
1200 ~ 115200 bps
10 k, 20 k, 50 k, 125 k , 250 kbps , 500 k, 800 k, 1M
125 k, 250 k, 500 k
FIFO Size: 16 bytes
Power
Consumption: 0.4 W
Mechanical
Dimensions (mm): 38 mm x 64 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
