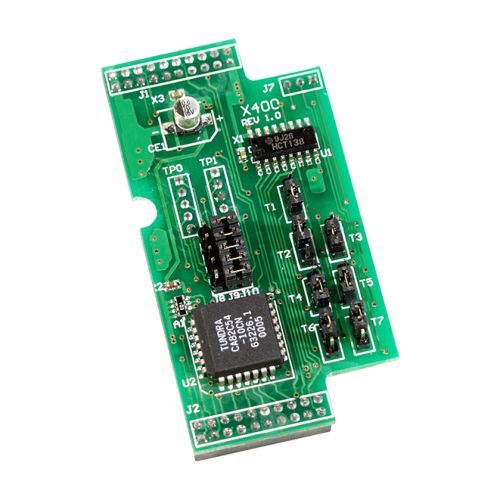

X400 CR, 3-channel of 16-bit Timer/Counter
X400 CR
3-channel of 16-bit Timer/Counter
Features
3-channel Non-Isolation 16-bit Counter/1-channel Non-Isolation 16-bit Counter/1-channel Non-Isolation 32-bit Counter
Introduction
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X400 is a 3-channel Non-Isolation 16-bit Timer / Counter X-board for I-7188XC.
Specifications
Timer/Counter/Frequency
Channels: 3
Resolution: 16-bit
Isolation: None
Power
Consumption: 0.3 W
Mechanical
Dimensions (mm): 38 mm x 64 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
