X310 CR, 1-channel A/D (0 ~ 10 V), 1-channel A/D (0 ~ 20 mA), 2-channel D/A (0 ~ 10 V), 3-channel D/I and 3-channel D/O

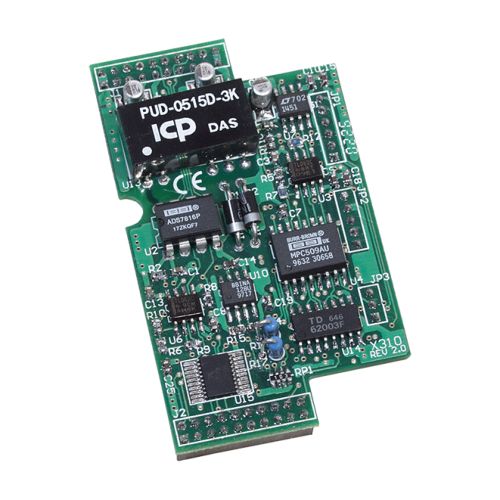

X310 CR
1-channel A/D (0 ~ 10 V), 1-channel A/D (0 ~ 20 mA), 2-channel D/A (0 ~ 10 V), 3-channel D/I and 3-channel D/O
Features
2-channel Non-Isolation Analog Input and 1-channel Non-Isolation Analog Output and 3-channel Non-Isolation Digital Input and 3-channel Non-Isolation Digital Output
12-bit differential input (Ch 0: 0 ~ 20 mA, Ch 1: 0 ~ 10 VDC)
12-bit output (0 ~ 10 VDC)
Introduction
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X310 is a 2-channel Non-Isolation Analog Input and 1-channel Non-Isolation Analog Output and 3-channel Non-Isolation Digital Input and 3-channel Non-Isolation Digital Output X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
Specifications
Analog Input
Channels: 2
Type: Voltage/Current
Range: Ch0 : 0 ~ 20 mA
Ch1 : 0 ~ +10 V
Resolution: 12-bit
Sampling Rate: 1 KHz Max.
Input Impedance: Ch0 : 500 Ohm
Ch1 : 2 MOhm
Overvoltage Protection: +30 VDC
Isolation: None
Analog Output
Channels: 2
Type: Voltage
Range: 0 ~ +10 V
Resolution: 12-bit
Voltage Output Capability: 10 mA
Isolation: None
Digital Input
Channels: 3
Type: Wet Contact
Sink/Source (NPN/PNP): Sink
ON Voltage Level: +3.5V ~ +30VDC
OFF Voltage Level: +1V Max.
Isolation: None
Digital Output
Channels: 3
Type: Open Collector
Sink/Source (NPN/PNP): NPN
Load Voltage: ≤ +30 VDC
Load Current: 100 mA
Isolation: None
Mechanical
Dimensions (mm): 38 mm x 64 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
