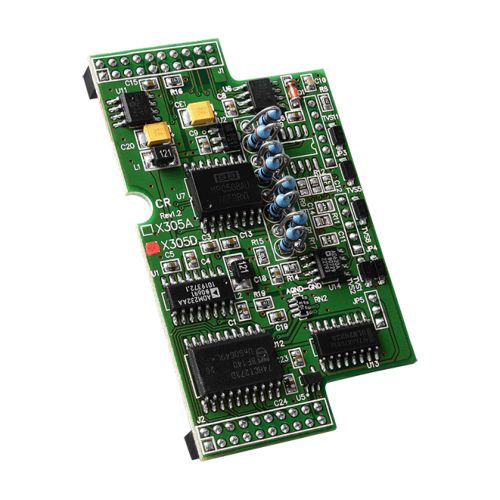

X305D CR, 8-channel A/D (0~20mA), 2-channel D/I and 2-channel D/O
X305D CR
8-channel A/D (0~20mA), 2-channel D/I and 2-channel D/O
X305D CR: 8-channel A/D (0~20mA), 2-channel D/I, 2-channel D/O (RoHS)
Analog Input
Channel: 8
Wiring: Single-Ended
Range: 0 ~ 20 mA
Resolution: 12-bit
Sampling Rate: 4 KHz
Input Impedance: 125 Ohm
Over voltage Protection: +/- 30 VDC
Isolation: non-isolated
Digital Input
Input Channels: 2
Contact: Dry
Dry Contact: On Voltage Level: Close to GND ; Off Voltage Level Open
Overvoltage Protection: 30 VDC
Digital Output
Channel: 2
Type: Open Collector
Sink/Source: Sink
Load Voltage: +30 VDC
Max. Load Current: 100 mA/channel
Overload Protection: 1.4 A
Digital Output
Consumption: 1 mW
