X305 CR, 7-channel A/D (±5V), 1-channel D/A (±5V), 2-channel D/I and 2-channel D/O

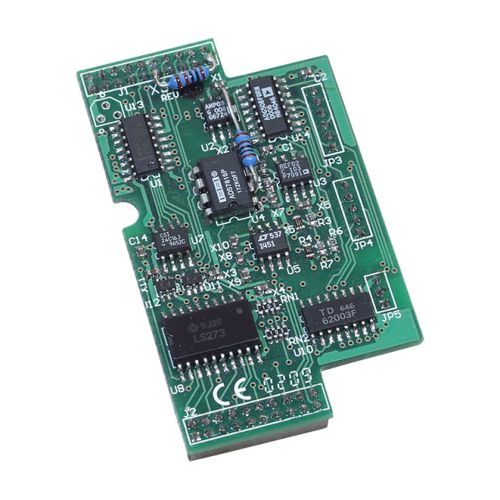

X305 CR
7-channel A/D (±5V), 1-channel D/A (±5V), 2-channel D/I and 2-channel D/O
Features
7-channel Non-Isolation Analog Input and 1-channel Non-Isolation Analog Output and 2-channel Non-Isolation Digital Input and 2-channel Non-Isolation Digital Output
12-bit input (±5 VDC)
12-bit output (±5 VDC)
Introduction
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X305 is a 7-channel Non-Isolation Analog Input and 1-channel Non-Isolation Analog Output and 2-channel Non-Isolation Digital Input and 2-channel Non-Isolation Digital Output X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
Specifications
Analog Input
Channels: 7
Type: Voltage
Range: ± 5 VDC
Resolution: 12-bit
Sampling Rate: 1 KHz Max.
Input Impedance: 50 KOhm
Overvoltage Protection: ±30 VDC
Isolation: None
Analog Output
Channels: 1
Type: Voltage
Range: ± 5 VDC
Resolution: 12-bit
Voltage Output Capability: 10 mA
Isolation: None
Digital Input
Channels: 2
Type: Wet Contact
Sink/Source (NPN/PNP): Sink
ON Voltage Level: +3.5V ~ +30VDC
OFF Voltage Level: +1V Max.
Isolation: None
Digital Output
Channels: 2
Type: Open Collector
Sink/Source (NPN/PNP): NPN
Load Voltage: ≤ +30 VDC
Load Current: 100 mA
Isolation: None
Mechanical
Dimensions (mm): 38 mm x 64 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
