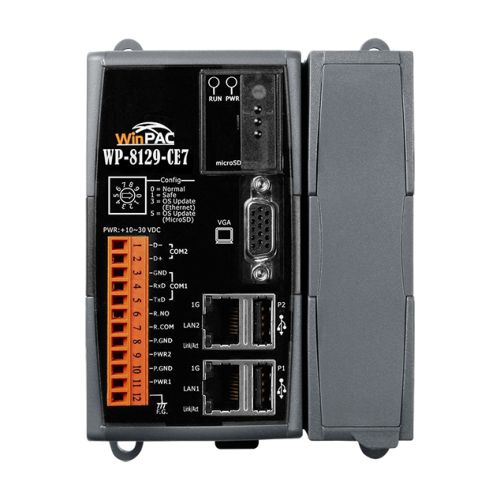

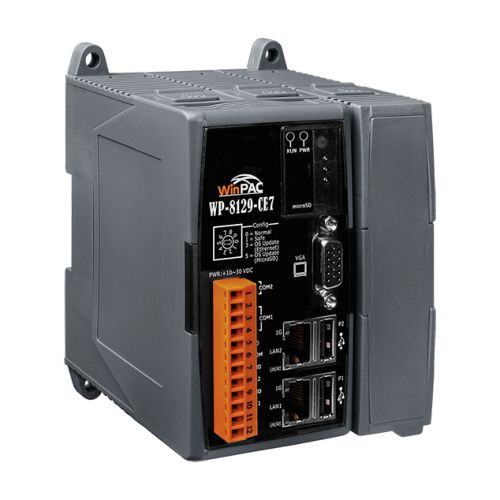

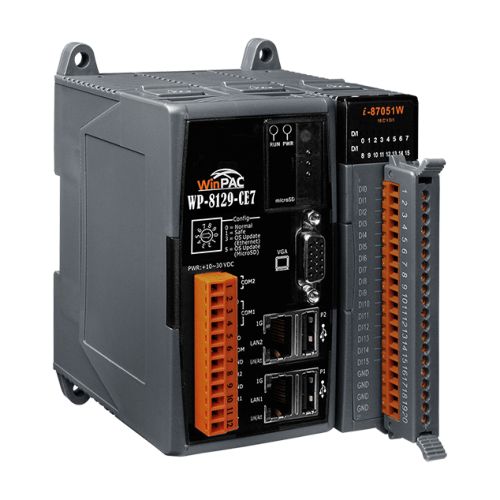

WP-8129-CE7 CR ICP DAS Windows CE7 Based


WP-8129-CE7 CR

InduSoft (300 tags) Based, 1-slot WinPAC (WinCE 7.0)



€ 1.564,90

(VAT excluded)

€ 1.909,18(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.909,18

Availability: 15 business days

SKU: 119043

Model: WP-8129-CE7 CR

Need Help?


  • Cortex-A8, 1GHz CPU
  • 512 MB DDR3 and 256 MB Flash
  • Windows CE 7.0 Professional
  • Hard Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Slots
  • 2 10/100/1000M Ethernet Ports
  • Redundant Power Input
  • Operating Temperature: -25 ~ +75°C


The WP-8x29-CE7 is the new generation Windows CE 7.0 based PAC with InduSoft Runtime pre-installed of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system. Each WP-8x29-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.



OS: Windows CE 7.0
Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines
SDK: Dll for VC, Dll for Visual Studio.Net 2008

Main Unit

CPU: Cortex-A8 (1.0 GHz)
64-bit Hardware Serial Number: Yes, for Software Copy Protection
System Memory: DDR3 SDRAM: 512 MB
Storage: Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB)
Non-Volatile Memory: MRAM: 128 KB; EEPROM: 16 KB
Real Time Clock: Provide second, minute, hour, date, day of week, month, year
Watchdog Timer: Yes


Signal: VGA: 800 x 600, 1024 x 768

LED Indicators

Status: 1 x Programmable

I/O Expansion

Slots: 1

COM Ports

Ports: 1 x RS-232, Non-isolated; 1 x RS-485 (3000VDC Isolated)


Rotary Switch: Yes (0 ~ 9)
DIP Switch: Yes (8 bits)


Ports: 2 x RJ-45, 10/100/1000Base-TX


Connector: 2 x USB


Input Range: +10 VDC ~ +30 VDC
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption: 7.3 W (0.3 A @ 24 VDC)


Dimensions (mm): 95 x 132 x 111 (W x L x H)
Installation: DIN-Rail & wall mounting


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, non-condensing
