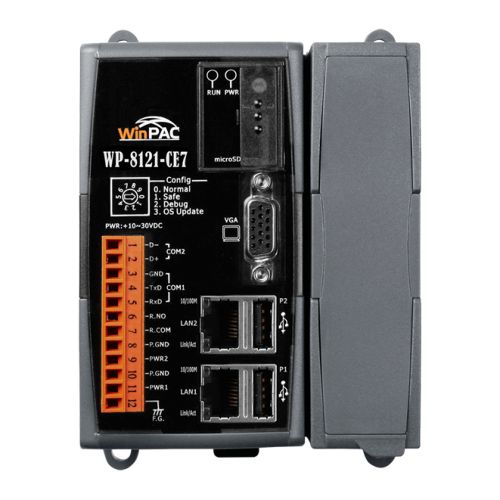

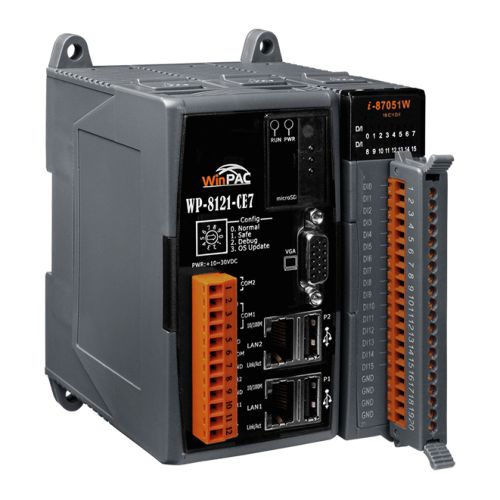

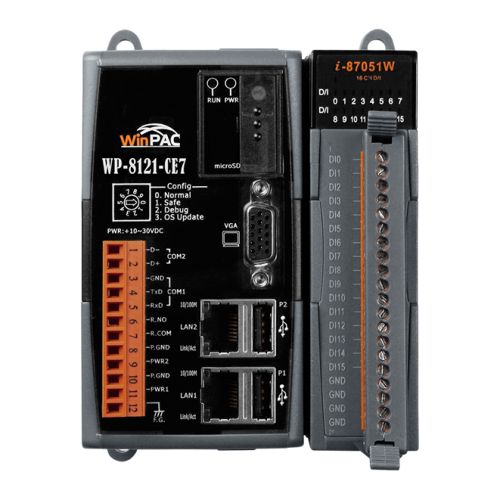

WP-8121-CE7 CR, 1-slot Standard PAC with Cortex-A8 CPU, and WinCE 7.0
WP-8121-CE7 CR
1-slot Standard PAC with Cortex-A8 CPU, and WinCE 7.0
Free Shipping
Features
• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 16 KB FRAM and 512 KB MRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Ports
‣ 2 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 1 x I/O Expansion Slot
• 2 x LED Indicators
• Built-In dual Watchdog Timer
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C
Introduction
The WP-8121-CE7 is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-8121-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1 expansion I/O slot that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules. Its operating system,Windows CE 7.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 7.0 in the WP-8121-CE7 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Visual C++, SCADA software, Soft PLC …etc.
Specifications
Software
OS: Windows CE 7.0
Service: FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support: .Net Compact Framework 3.5
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK: Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU: Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number: Yes
System Memory: 512 MB DDR3 SDRAM
Storage: 256 MB Flash, 4 GB miicroSD card (up to 32 GB)
Non-Volatile Memory: 512 KB MRAM, 16 KB EEPROM
Real Time Clock: Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer: Dual Watchdog Timer
Display
Signal: VGA
Resolution: 800 x 600, 1024 x 768
LED Indicators
Status: 1x Power, 1 x System/Programmable
I/O Expansion
I/O Type: I-8K, I-87K series
Slots: 1
COM Ports
Ports: 1 x RS-232, 1 x RS-485 (3000 VDC Isolated)
HMI
Buzzer: Yes
Rotary Switch: 1 x 10 Position (0 ~ 9)
Ethernet
Ports: 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports: 2 x USB 2.0
Power
Capacity: 1.0 A, 5 V supply to CPU and backplane, 0.6 A, 5 V supply to I/O expansion slots, total 8 W
Input Range: +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption: 7.3 W (0.3 A @ 24 VDC)
Mechanical
Casing: Plastic
Dimensions (mm): 95 x 132 x 111 (W x L x H)
Installation: DIN-Rail, Wall mounting
Ingress Protection Rating: IP30 (Aluminum)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90 % RH, Non-condensing
