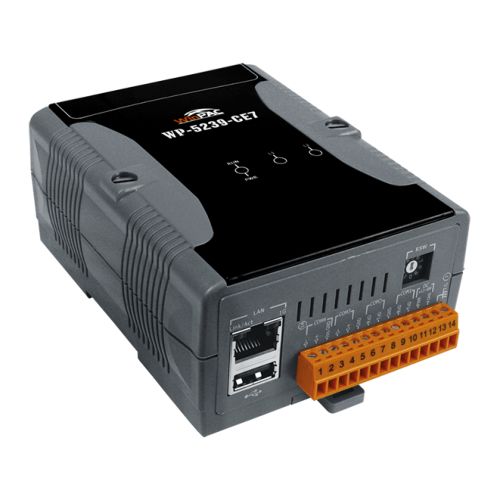

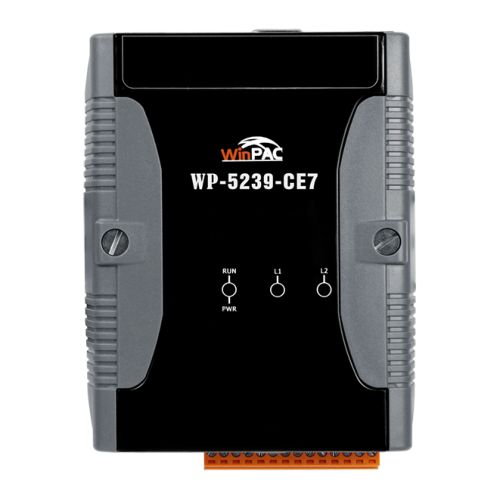

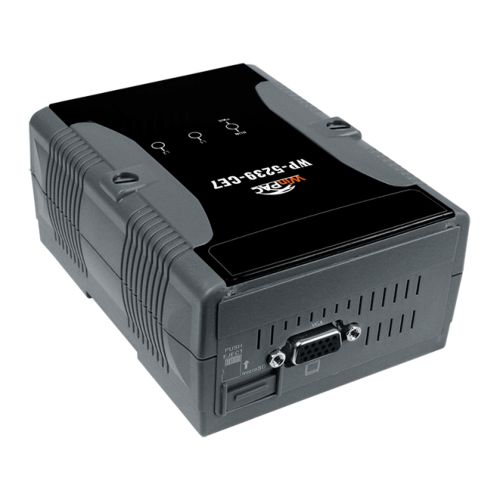

WP-5239-CE7-1500 CR ICP DAS Windows CE7 Based

WP-5239-CE7-1500 CR ICP DAS

WP-5239-CE7-1500 CR ICP DAS

WP-5239-CE7-1500 CR

InduSoft (1500 tags) based WinPAC-5000 with WinCE 7.0

Quantity:

Price

€ 1.391,86

(VAT excluded)

€ 1.698,07(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.698,07

Availability: 15 business days

SKU: 110745

Model: WP-5239-CE7-1500 CR

Need Help?


SOFTWARE FEATURES
Alarms
In addition to the many alarm functions you expect from InduSoft Web Studio, v7.1 also sends online alarms or reports using multi-media formats like PDF. Alarms are real-time and historical; log data in binary format or to any database. Use remote notification to have alarms sent right to your inbox, printer, or smartphone! Custom Alarm fields allow you to customize up to 10 additional fields to the history of alarms.

Recipe / Report
Save time and maintain consistency by automating part parameters or production quantities with flexible recipe management tools. Create clear, concise reports in plain text, RTF, XML, PDF, HTML, and CSV or integrate with Microsoft Office programs such as Excel. Get the data you need, in the format you need it, to make informed decisions, fast. InduSoft has also partnered with Ocean Data Systems to offer further reporting capabilities through Dream Report for Indu-Soft Web Studio, available as an add-on.

Trend
Real-time and Historical trends, and SPC functionality are supported. Log data in binary format. or to any local or remote SQL database. Color or fill trends with graphic elements to enhance clarity of data. Date/Time based or numeric (X/Y plot) trends give you the flexibility to display information that best suits your application. InduSoft Web Studio supports vertical and horizontal trending.

Database
Connect to any SQL database (MS SQL, MySQL, Sybase, Oracle), or MS Access or Excel, and ERP/MES systems (including SAP), even from Windows Embedded CE. InduSoft Web Studio is flexible, offering a built in interface that doesn’t require knowledge of SQL (for trends, alarms/events, grid and other objects). Use any SQL statement you need, anywhere you need it.

Driver / OPC
Provides over 240 native communication drivers for PLCs, temperature controllers, motion controllers, bar code/2D/RFID readers, and many other devices. Use these built in drivers, or connect to an OPC server. InduSoft driver toolkits even allow you the flexibility to build your own drivers.

Thin Clients
Remotely view screens as web pages using Internet Explorer web browser, or InduSoft Secure Viewer. Without installing any additional software and provide embedded firewall, remote client command disabled and login authority functions to protect the system security.

HARDWARE FEATURES

  • Cortex-A8, 1GHz CPU
  • 512 MB SDRAM and 256 MB Flash
  • Windows CE 7.0 Professional
  • Hard Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus
  • 10/100/1000M Ethernet Port
  • 4 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75°C

INTRODUCTION

The WP-5239-CE7 series is equipped a Cortex-A8(1GHz CPU) and running a windows CE.NET 7.0 operating system with InduSoft Runtime pre-installed. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the WP-5239-CE7 series can save application program, image file and data.

SPECIFICATIONS

System Software
OS: Windows CE 7.0 Professional
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server
SDK Provided: Dll for Visual Studio.Net 2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese

Development Software
InduSoft Software: InduSoft Web Studio Runtime

CPU Module
CPU: Cortex-A8, 1GHz
DDR3 SDRAM: 512 MB
Flash: 256 MB
FRAM: 64 KB
Expansion Flash Memory: MicroSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timer: Yes
LED Indicators: 1 LED for Power and Running, 2 LED for user defined
Rotary Switch: Yes (0 ~ 9)

VGA & Communication Ports
VGA and Communication Ports: Yes. Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet: RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI / MDI-X, LED indicators)
USB 2.0 (host): 1
COM 1: RS-232 (RxD, TxD and GND); Non-isolated
COM 2: RS-232 (RxD, TxD and GND); Non-isolated
COM 3: RS-485 (Data+, Data-); Non-isolated
COM 4: RS-485 (Data+, Data-); 2500 VDC isolated

I/O Expansion Slots
I/O Expansion Bus: Yes, one optional XV-board

Mechanical
Dimensions (W x L x H): 91 mm x 132 mm x 52 mm
Installation: DIN-Rail Mounting

Environmental
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -40 °C ~ +80 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing

Power
Input Range: +12 ~ +48 VDC
Consumption: 4.8 W
