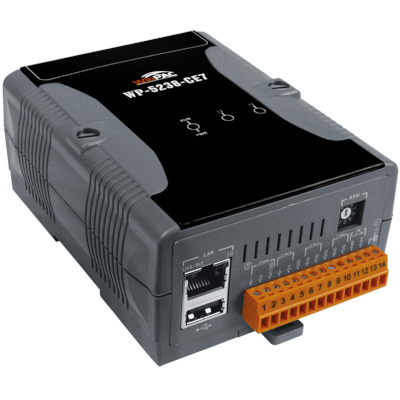

WP-5238-CE7 CR ICP DAS Windows CE7 Based


WP-5238-CE7 CR

Win-GRAF Based PAC with Cortex-A8 CPU, WinCE 7.0, and 1 I/O Bus



€ 706,47

(VAT excluded)

€ 861,89(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 861,89

Availability: 15 business days

SKU: 110698

Model: WP-5238-CE7 CR

Need Help?

  • Cortex A8,1 GHz CPU
  • 512 MB SDRAM and 256 MB Flash
  • Windows CE 7.0 Professional
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • Hard Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus
  • 10/100/1000M Ethernet Port
  • 4 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75 °C


The Win-GRAF WP-5000 Series (WP-5238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This series PAC is equipped an Cortex A8 CPU (1 GHz) and running a windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in micro SD, the Win-GRAF WP-5000 series can save application program, image file and data.
The benefits of running Windows CE on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.


System Software
OS: Windows CE 7.0 Core
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server
SDK Provided: Dll for Visual Studio .Net 2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
Development Software
Win-GRAF Software: Win-GRAF: IEC 61131-3 standard
Languages: LD, ST, FBD, SFC, IL

Max. Code Size: 2 MB

Scan Time: 3 ~ 15 ms for normal program;

15 ~ 50 ms for complex or large program
Non-Win-GRAF: Options: VS.NET 2008 (VB.NET, C#.NET, C)
CPU Module
CPU: Cortex A8, 1 GHz
Flash: 256 MB
FRAM: 64 KB (for retain variables)
Expansion Flash Memory: microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
LED Indicators: 1 LED for Power and Running; 2 LED for user defined
Rotary Switch: Yes (0 ~ 9)
VGA & Communication Ports
VGA: Yes. Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet: RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 1
COM 1: RS-232 (RxD, TxD and GND); Non-isolated
COM 2: RS-232 (RxD, TxD and GND); Non-isolated
COM 3: RS-485 (Data+, Data-); Non-isolated
COM 4: RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion
I/O Expansion Bus: Yes, one optional XV-board
Dimensions (W x L x H): 91 mm x 132 mm x 52 mm
Installation: DIN-Rail Mounting
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)
Input Range: +10 ~ +30 VDC
Consumption: 4.8 W
