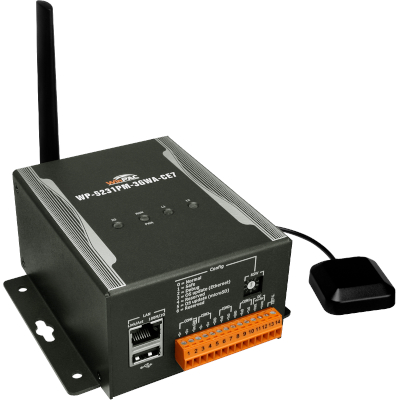

WP-5231PM-3GWA-CE7 CR
3G PAC with Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus, Metal Case
- Cortex-A8, 1GHz CPU
- Windows CE 7.0 Professional
- 512 MB SDRAM and 256 MB Flash
- 64-bit Hardware Serial Number
- Hard Real-Time Capability
- I/O Expansion Bus
- 10/100/1000M Ethernet Ports
- 3 Serial Ports (RS-232/485)
- Operating Temperature: -25 ~ +75°C
- Industrial Tri-band 3G module
- 3G modem
INTRODUCTION
The WP-5231PM-3GWA-CE7 is equipped a Cortex-A8 CPU (1GHz) and running a windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the WP-5231PM-3GWA-CE7 can save application program, image file and data.
The 3G module work on frequencies of WCDMA 2100/1900/900/850 MHz and GSM 850/900/1800/1900 MHz. These modules utilize the 3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS or 3G connection applications with our PAC.
SPECIFICATIONS
System Software
OS: Windows CE 7.0 Professional
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server
SDK Provided: Dll for Visual Studio.Net 2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
CPU Module
CPU: Cortex-A8, 1GHz
DDR3 SDRAM: 512 MB
Flash: 256 MB
FRAM: 64 KB
Expansion Flash Memory: microSD socket with one microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
LED Indicators: 1 LED for Power and Running; 2 LED for user defined
Rotary Switch: Yes (0 ~ 9)
VGA & Communication Ports
VGA and Communication Ports: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet: RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 1
COM 1: Console Reserved for OS
COM 2: RS-232 (RxD, TxD and GND); Non-isolated
COM 3: RS-485 (Data+, Data-); Non-isolated
COM 4: RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus: Yes, one optional XV-board
Mechanical
Casing: Metal
Dimensions (W x L x H): 117 mm x 126 mm x 58 mm
Installation: DIN-Rail Mounting/Wall Mounting
Environmental
Operating Temperature: -25 to +75°C
Storage Temperature: -40 to +80°C
Ambient Relative Humidity: 10 to 90% RH (non-condensing)
Power
Input Range: +12 to +48 VDC
Consumption: 6.5 W
GSM System
Frequency Band: GSM: 850/900/1800/1900 MHz
GPRS Connectivity: GPRS class 12/10; GPRS station class B
Data GPRS: Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8k bps
3G System
Frequency Band: WCDMA 850/900/1900/2100 MHz
Data Transmission: WCDMA / HSPA+, Download: Max. 14.4Mbps; Upload: Max 5.76Mbps
GPS System (option)
Support Channels: 32
Protocol Support: NMEA 0183
