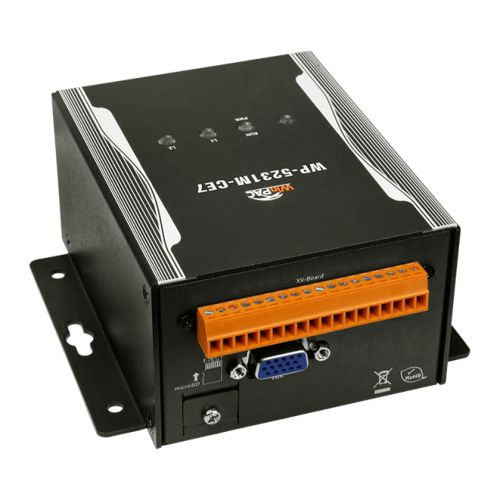

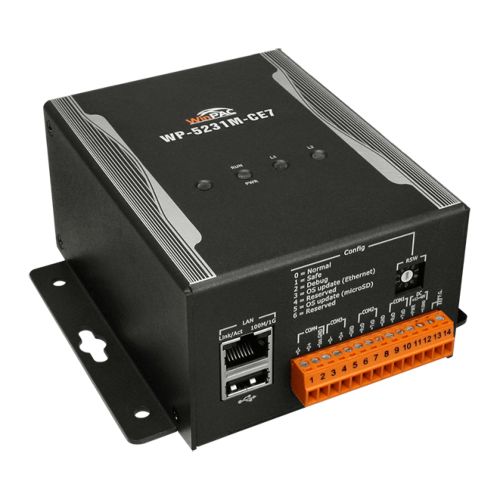

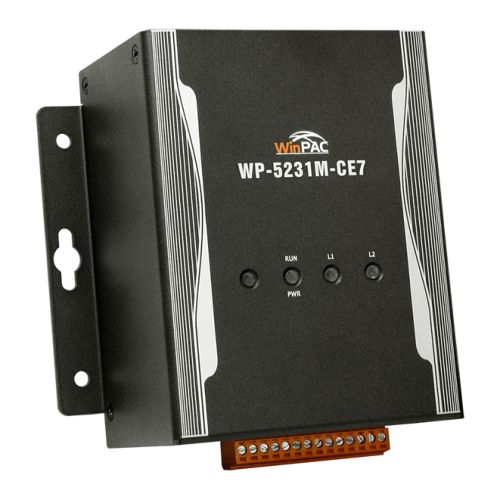

WP-5231M-CE7 CR, Standard PAC with Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus, Metal Case
WP-5231M-CE7 CR
Standard PAC with Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus, Metal Case
Free Shipping
Features
• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 64 KB FRAM memory for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 4 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus Interface
• 6 x LED Indicators
• Built-In dual Watchdog Timer
• Metal casing
• Operating Temperature: -25 ~ +75 °C
Introduction
The WP-5231M-CE7 series is equipped a Cortex-A8 CPU (1 GHz) and running a windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the WP-5231M-CE7 series can save application program, image file and data.
Specifications
Software
OS: Windows CE 7.0 Professional
Service: FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support: .Net Compact Framework 3.5
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK: Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU: Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number: Yes
System Memory: 512 MB DDR3 SDRAM
Storage: 256 MB Flash, 4 GB microSD card (up to 32 GB)
Non-Volatile Memory: 64 KB FRAM
Real Time Clock: Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer: Dual Watchdog Timer
Display
Signal: VGA
Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
LED Indicators
Status: 1 x System/Power, 2 x Programmable
I/O Expansion
I/O Type: XV-board
COM Ports
Ports: 2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated)
HMI
Buzzer: Yes
Rotary Switch: 1 x 10 Position (0 ~ 9)
Ethernet
Ports: 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports: 1 x USB 2.0
Power
Input Range: +12 ~ 48 VDC
Consumption: 4.8 W
Mechanical
Casing: Metal
Dimensions (mm): 117 x 126 x 58 (W x L x H)
Installation: DIN-Rail, Wall mounting
Ingress Protection Rating: IP30 (Aluminum)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 10 ~ 90 % RH, Non-condensing
