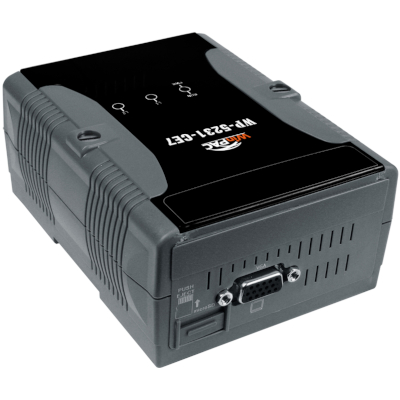

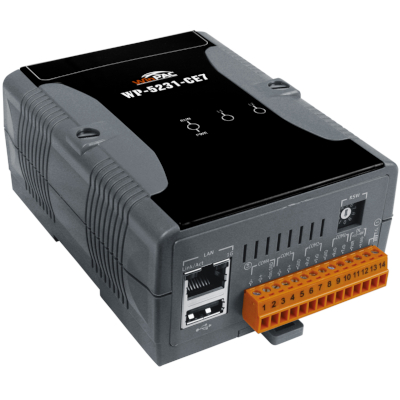

WP-5231-CE7 CR ICP DAS Windows CE7 Based

• Cortex-A8, 1GHz CPU
• 512 MB SDRAM and 256 MB Flash
• Windows CE 7.0 Professional
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus
• 10/100/1000M Ethernet Port
• 4 Serial Ports (RS-232/485)
• Operating Temperature: -25 ~ +75°C

introduction

The WP-5231-CE7 and the WP-5231M-CE7 are equipped a Cortex-A8 CPU (1GHz) and running a windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, The WP-5231-CE7 and the WP-5231M-CE7 can save application program, image file and data. The WP-5231-CE7 comes with a plastic casing, while the WP-5231M-CE7 comes with a metal one.

specifications

System Software
OS: Windows CE 7.0 Professional
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server
SDK Provided: Dll for Visual Studio.Net 2008
Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese

CPU Module
CPU: Cortex-A8, 1GHz
DDR3 SDRAM: 512 MB
Flash: 256 MB
FRAM: 64 KB
Expansion Flash Memory: microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
LED Indicators: 1 LED for Power and Running; 2 LED for user defined
Rotary Switch: Yes (0 ~ 9)

VGA & Communication Ports
VGA and Communication Ports: Yes. Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet: RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 1
COM 1: RS-232 (RxD, TxD and GND); Non-isolated
COM 2: RS-232 (RxD, TxD and GND); Non-isolated
COM 3: RS-485 (Data+, Data-); Non-isolated
COM 4: RS-485 (Data+, Data-); 2500 VDC isolated

I/O Expansion Slots
I/O Expansion Bus: Yes, one optional XV-board

Mechanical
Casing: Plastic
Dimensions (W x L x H): 91 mm x 132 mm x 52 mm
Installation: DIN-Rail Mounting

Environmental
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)

Power
Input Range: +12 ~ +48 VDC
Consumption: 4.8 W
