features and benefits

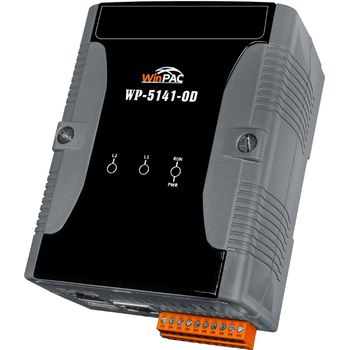

The WP-5141-OD-EN is the new generation PAC (Programmable Automation Controller).
It is equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus.
The WP-5141-OD-EN has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost.
Using Windows CE.NET 5.0 gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, SoftPLC etc.
It give users all of the best features of both traditional PLCs and Windows capable PCs.
For hardware expansion, it also supports an I/O expansion bus.
The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions.
Nearly all kinds of I/O functions can be implemented by this bus.
But the bus can support only one board.
There are more than 10 boards available for WinPAC-5000 series, users can choose one of them to expand hardware features.
- PXA270, 520 MHz CPU
- Windows CE 5.0
- Hard Real-Time Capability
- Rich software support
- Various Memory and Storage
- ‣ 128 MB SDRAM and 64 MB Flash
- ‣ 16 KB EEPROM for data retention
- ‣ 1 x microSD socket with one microSD card
- Various Communication Interfaces
- ‣ 2 x 10/100 Ethernet Ports
- ‣ 4 x Serial Ports (RS-232/485)
- ‣ 1 x USB 2.0 (host)
- Built-In VGA Port
- Built-In Real-time clock
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Bus Interface
- 3 x LED Indicators
- Built-In dual Watchdog Timer
- Audio with Microphone-in and Earphone-out
- Operating Temperature: -25 ~ +75 °C
specifications
Software| OS | Windows CE 5.0 |
|---|
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
|---|
| Framework Support | .Net Compact Framework 3.5 |
|---|
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
|---|
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
|---|
Main Unit| CPU | PXA270 or compatible, 32-bit, 520 MHz |
|---|
| 64-bit Hardware Serial Number | Yes |
|---|
| System Memory | 128 MB SDRAM |
|---|
| Storage | 64 MB Flash, 4 GB microSD card (up to 32 GB) |
|---|
| Non-Volatile Memory | 16 KB EEPROM |
|---|
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
|---|
| Watchdog Timer | Dual Watchdog Timer |
|---|
Display| Signal | VGA |
|---|
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
|---|
LED Indicators| Status | 1 x Power/System, 2 x Programmable |
|---|
I/O Expansion| I/O Type | XW-board |
|---|
HMI| Buzzer | Yes |
|---|
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
|---|
Audio| Jack | Microphone-In and Earphone-Out |
|---|
Ethernet| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
|---|
COM Ports| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
|---|
USB| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
|---|
Power| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
|---|
| Redundant Power Inputs | Yes |
|---|
| Consumption | 6.0 W |
|---|
Mechanical| Casing | Plastic |
|---|
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
|---|
| Installation | DIN-Rail mounting |
|---|
| Ingress Protection Rating | IP30 (Aluminum) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +80 °C |
|---|
| Humidity | 10 ~ 90 % RH, Non-condensing |
|---|
