WP-5141-EN CR ICP DAS Windows CE5 Based

WP-5141-EN CR ICP DAS

WP-5141-EN CR

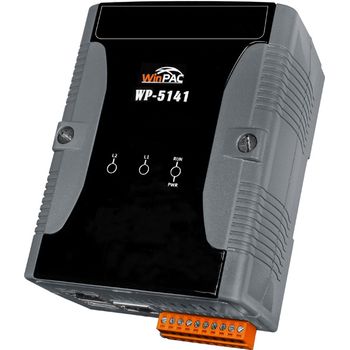

Standard WP-5000 with PXA270 CPU, WinCE 5.0, and 1 I/O Bus (Multilanguage Version)

Quantity:

Price

€ 590,60

(VAT excluded)

€ 720,53(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 720,53

Availability: 15 business days

SKU: 4278

Model: WP-5141-EN CR

Need Help?


  • Windows CE.NET 5.0
  • Hard Real-Time Capability
  • Fast Boot Speed
  • PXA270 CPU (32-bit & 520 MHz)
  • 128 MB SDRAM & 64 MB Flash
  • Support VS.Net 2003/2005/2008 & eVC
  • 64-bit Hardware Serial Number for Software Protection
  • Audio with Microphone-In and Earphone-Out
  • I/O Expansion Bus
  • Support VGA (640 × 480/800 × 600)
  • Support microSD Socket
  • Dual 10/100M Ethernet Ports
  • 3 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75 °C

introduction

The ICP DAS WinPAC-5000 Series is the new generation PAC (Programmable Automation Controller). It is equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus.

The WinPAC-5000 series has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE.NET 5.0 gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, SoftPLC …etc. It give users all of the best features of both traditional PLCs and Windows capable PCs.

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for WinPAC-5000 series, users can choose one of them to expand hardware features.

SPECIFICATIONS

System Software
OS: Windows CE 5.0
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided: Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008

CPU Module
CPU: PXA270 or compatible (32-bit and 520 MHz)
SDRAM: 128 MB
Flash: 64 MB (32 MB for OS, 32 MB for System_Disk and System Registry)
EEPROM: 16 KB Data Retention: 40 years; 1,000,000 erase/write cycles
Expansion Flash Memory: microSD socket with one 2 GB microSD card (support up to 16 GB microSDHC card)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes
Dual Watchdog Timer: Yes
LED Indicators: 1 LED for Power and Running, 2 LEDs for user programmable
Rotary Switch: Yes (0 ~ 9)

VGA & Communication Ports
VGA: Yes (640 × 480/800 × 600)
Ethernet: RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 1.1 (client): 1
USB 1.1 (host): 1
Audio Port (Microphone-In and Earphone-Out): -
COM 1: RS-232 (RxD, TxD and GND); Non-isolated
COM 2: RS-485 (D2+, D2-); 2500 VDC; isolated
COM 3: RS-232 (RxD, TxD and GND); Non-isolated

I/O Expansion Slots
I/O Expansion Bus: Yes, to mount one optional XW-board.

Mechanical
Dimensions (W x L x H): 91 mm x 126 mm x 52 mm
Installation: DIN-Rail Mounting

Environmental
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +80 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing

Power
Input Range: +10 VDC ~ +30 VDC
Isolation: 1 kV
Consumption: 4.8 W (0.2 A @ 24 VDC)
