WISE-7560M CR ICP DAS WISE IO Modules

Runs on browsers, no extra software tool is required.

No more programming, Web pages provided for control logic editing.

IF-THEN-ELSE logic rules execution ability.

Built-in I/O (Relay: 6 Channels; DI: 6 Channels).

Support I/O channel monitoring/control, Timer, Schedule operations.

Support non-SSL Email sending and CGI Command sending operations.

Modbus TCP Protocol for SCADA System Integration.

MQTT Protocol for IT & IoT (Internet of Things) System Integration.

IEEE 802.3af-compliant Power over Ethernet (PoE).

2-port Ethernet Switch for Daisy-Chain Topology.



WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.

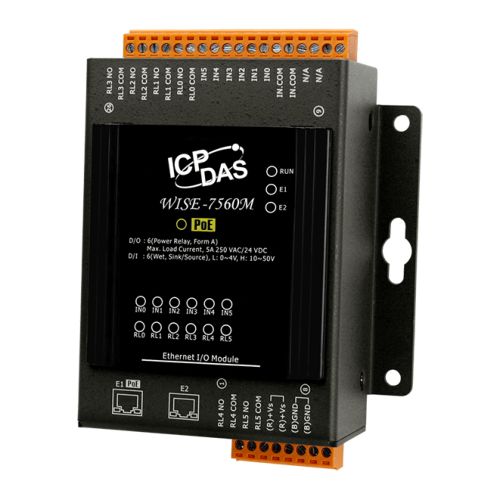

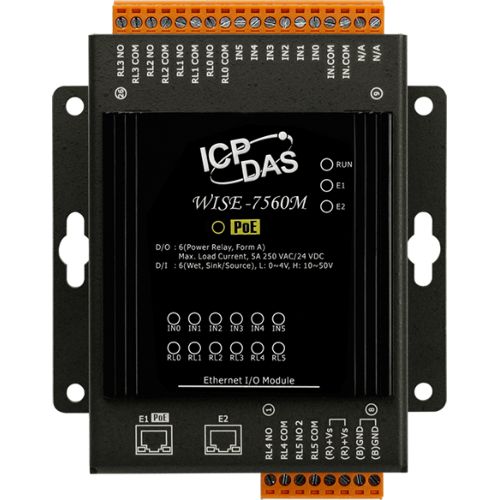

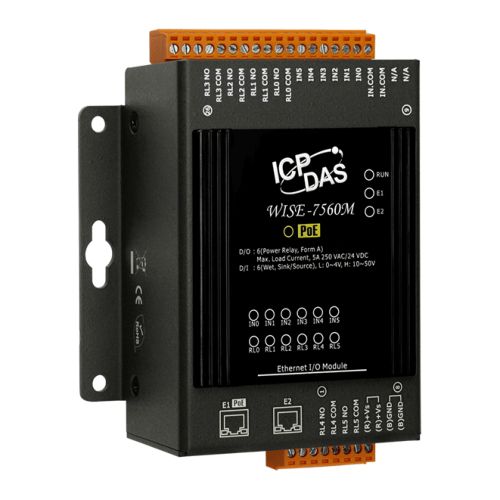

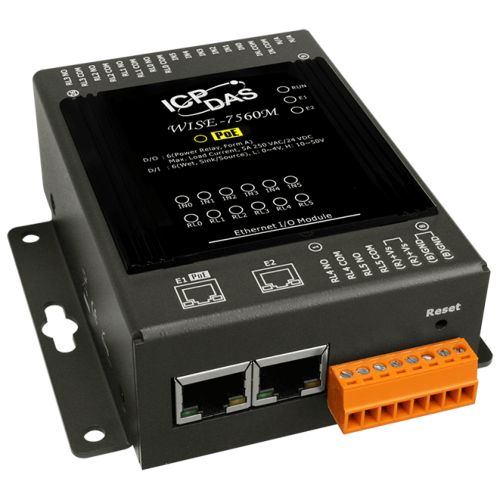

WISE-7560M provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads. WISE-7560M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7560M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.



By integrating with IF-THEN-ELSE rule engine, WISE-7560M provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7560M also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.



Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP

• CGI Command (Sending)

• MQTT Client (non-SSL)

• Active I/O (MQTT Publish)



• Web Interface for Configuration

• IF-THEN-ELSE Logic operation (72 rules supported)

• I/O channel monitoring and control

• Timer operation (24 set supported)

• Schedule operation (24 set supported)

• Internal Register operation (48 set supported)

• Recipe operation (24 set supported)

• Advanced P2P (8 set supported)

• non-SSL Email sending function

• SNTP Time Synchronization



CPU: 32-bit CPU (400 MHz)



Intra-module Isolation: 2500 VDC

EMS Protection:

EFT (IEC 61000-4-4): ±4 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±2 kV for Power Line



Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

12 x I/O Channel Status



Channels: 6

Type: Wet Contact

Sink/Source (NPN/PNP): Sink/Source

ON Voltage Level: +10 VDC ~ +50 VDC

OFF Voltage Level: +4 VDC Max.

Max. Counts: 16-bit (65535)

Frequency: 50 Hz

Min. Pulse Width: 10 ms

Input Impedance: 10 kΩ

Overvoltage Protection: +70 VDC



Channels: 6

Type: Power Relay, Form A (SPST N.O.)

Contact Rating: 5 A @ 250 VAC/24 VDC (Resistive Load)

Operate Time: 10 ms (max.)

Release Time: 5 ms (max.)

Electrical Endurance: 100,000 ops.

Mechanical Endurance: 20,000,000 ops.



Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 3.8 W

Powered from PoE: Yes, IEEE 802.3af, Class 1

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 97 x 120 x 42 (W x L x H)

Installation: Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
