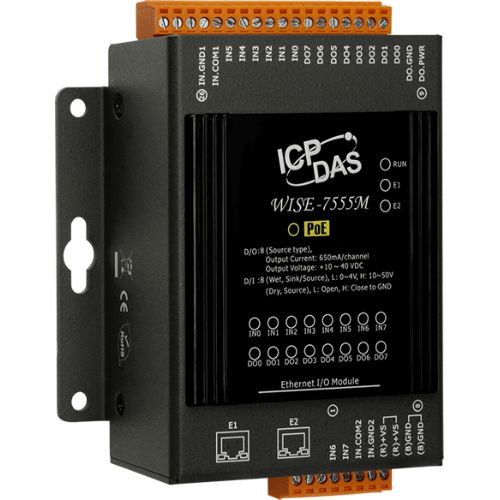

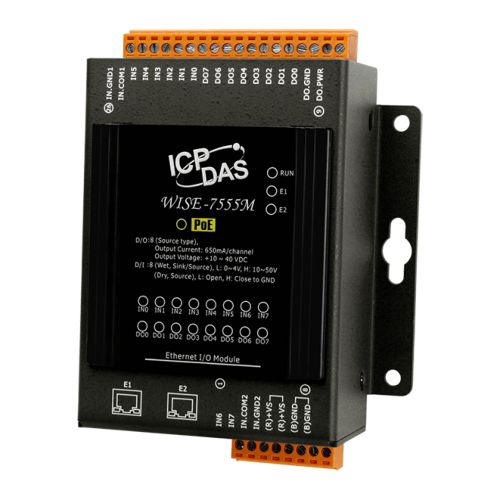

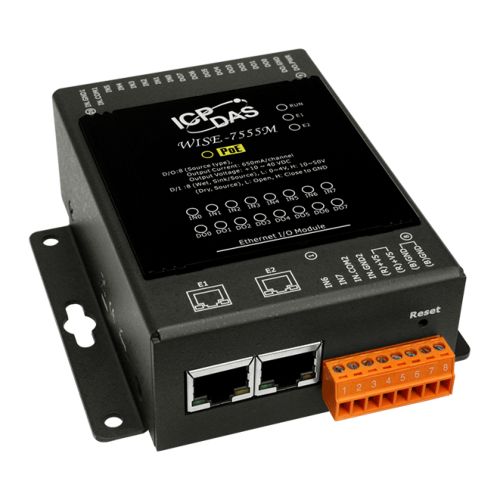

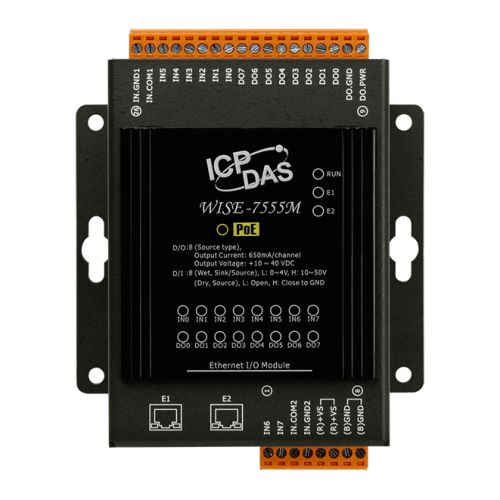

WISE-7555M CR ICP DAS WISE IO Modules

Runs on browsers, no extra software tool is required.

No more programming, Web pages provided for control logic editing.

IF-THEN-ELSE logic rules execution ability.

Built-in I/O (DI: 8 Channels; DO: 8 Channels).

Support I/O channel monitoring/control, Timer, Schedule operations.

Support non-SSL Email sending and CGI Command sending operations.

Modbus TCP Protocol for SCADA System Integration.

MQTT Protocol for IT & IoT (Internet of Things) System Integration.

IEEE 802.3af-compliant Power over Ethernet (PoE).

2-port Ethernet Switch for Daisy-Chain Topology.



WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.



WISE-7555M provides 8 Dry/wet contact digital input channels and 8 source-type digital output channels. It features optical isolation for 2500 VDC of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present. WISE-7555M follows IEEE 802.3af- compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7555M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.



By integrating with IF-THEN-ELSE rule engine, WISE-7555M provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7555M also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.



Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP

• CGI Command (Sending)

• MQTT Client (non-SSL)

• Active I/O (MQTT Publish)



• Web Interface for Configuration

• IF-THEN-ELSE Logic operation (72 rules supported)

• I/O channel monitoring and control

• Timer operation (24 set supported)

• Schedule operation (24 set supported)

• Internal Register operation (48 set supported)

• Recipe operation (24 set supported)

• Advanced P2P (8 set supported)

• non-SSL Email sending function

• SNTP Time Synchronization



CPU: 32-bit CPU (400 MHz)



Intra-module Isolation: 2500 VDC



EFT (IEC 61000-4-4): ±2 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±2 kV for Power Line



Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

16 x I/O Channel Status



Channels: 8

Type: Dry + Wet Contact

Sink/Source (NPN/PNP): Dry: Source

Wet: Sink/Source

ON Voltage Level: Dry: Close to GND

Wet: +10 VDC ~ +50 VDC

OFF Voltage Level: Dry: Open

Wet: +4 VDC Max.

Max. Counts: 16-bit (65535)

Frequency: 50 Hz

Min. Pulse Width: 10 ms

Effective Distance: 500 M Max.

Input Impedance: 10 kΩ

Overvoltage Protection: +70 VDC



Channels: 8

Type: Isolated Open Collector

Sink/Source (NPN/PNP): Source

Load Voltage: +10 VDC ~ +40 VDC

Load Current: 650 mA/Channel at 25°C

Overvoltage Protection: 47 VDC

Short-circuit Protection: Yes



Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 3.7 W

Powered from PoE: Yes, IEEE 802.3af, Class 1

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 97 x 120 x 42 (W x L x H)

Installation: Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
