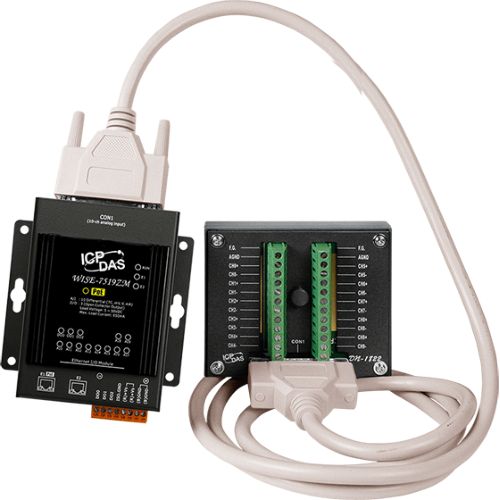

WISE-7519ZM/S2 CR ICP DAS WISE IO Modules



WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.



WISE-7519ZM/S2 is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Open thermocouple detection and ESD/ EFT/Surge protection mechanisms are also included. The three digital output channels can be set as alarm outputs. WISE-7519ZM/S2 follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7519ZM/S2 also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.



By integrating with IF-THEN-ELSE rule engine, WISE-7519ZM/S2 provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7519ZM/S2 also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.



Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP

• CGI Command (Sending)

• MQTT Client (non-SSL)

• Active I/O (MQTT Publish)



• Web Interface for Configuration

• IF-THEN-ELSE Logic operation (72 rules supported)

• I/O channel monitoring and control

• Timer operation (24 set supported)

• Schedule operation (24 set supported)

• Internal Register operation (48 set supported)

• Recipe operation (24 set supported)

• Advanced P2P (8 set supported)

• non-SSL Email sending function

• SNTP Time Synchronization



CPU: 32-bit CPU (400 MHz)



Intra-module Isolation: 2500 VDC



EFT (IEC 61000-4-4): ±2 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±2 kV for Power Line

LED Indicators:

Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

13 x I/O Channel Status



Channels: 10 (Differential)

Type: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V

±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)

Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710)

Temperature Output Consistency: Yes

Stable Temperature Output in the Field: Yes

Resolution: 16-bit

Accuracy: ±0.1% of FSR or better

Sampling Rate: 10 Samples/Second (Total)

Input Impedance: > 300 kΩ

Common Mode Rejection: 86 dB Min.

Normal Mode Rejection: 100 dB

Overvoltage Protection: 240 Vrms

Individual Channel Configuration: Yes

Channel-to-Channel Isolation: Yes, ±400 VDC

Open Wire Detection: Yes

Zero Drift: ±0.5 μV/°C

Span Drift: ±25 ppm/°C



Channels: 3

Type: Isolated Open Collector

Sink/Source (NPN/PNP): Sink

Load Voltage: +5 VDC ~ +50 VDC

Load Current: 650 mA/Channel

Overvoltage Protection: 60 VDC

Overload Protection: 1.4 A

Short-circuit Protection: Yes



Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 3.6 W

Powered from PoE: Yes, IEEE 802.3af, Class 1

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 97 x 114 x 38 (W x L x H)

Installation: Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
