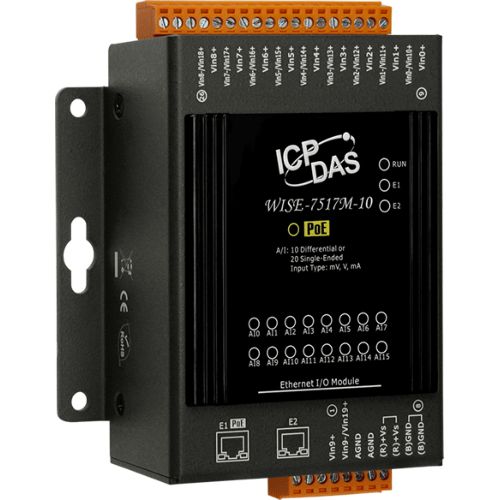

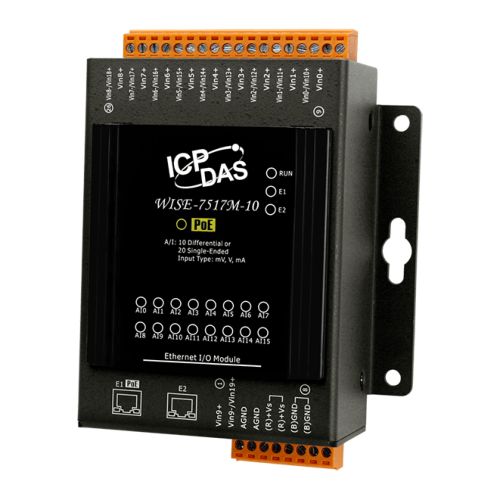

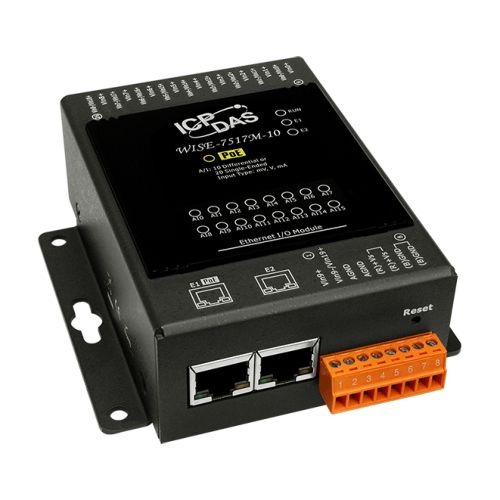

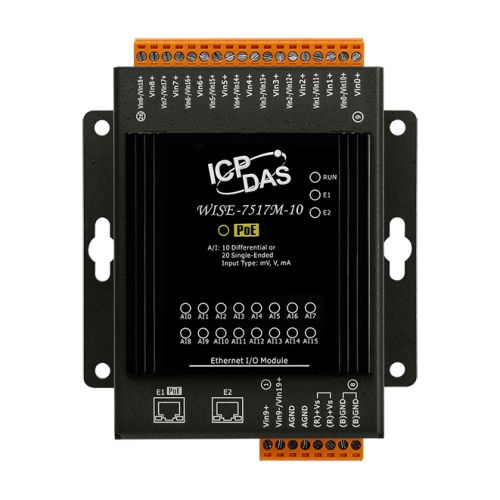

WISE-7517M-10 CR ICP DAS WISE IO Modules



WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.



WISE-7517M-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels. Each analog channel has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. It also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation. WISE-7517M-10 follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7517M-10 also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.



By integrating with IF-THEN-ELSE rule engine, WISE-7517M-10 provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7517M-10 also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.



Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP

• CGI Command (Sending)

• MQTT Client (non-SSL)

• Active I/O (MQTT Publish)



• Web Interface for Configuration

• IF-THEN-ELSE Logic operation (72 rules supported)

• I/O channel monitoring and control

• Timer operation (24 set supported)

• Schedule operation (24 set supported)

• Internal Register operation (48 set supported)

• Recipe operation (24 set supported)

• Advanced P2P (8 set supported)

• non-SSL Email sending function

• SNTP Time Synchronization



CPU: 32-bit CPU (400 MHz)



Intra-module Isolation: 2500 VDC



EFT (IEC 61000-4-4): ±2 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±2 kV for Power Line



Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

16 x I/O Channel Status



Channels: 10 differential or 20 single-ended, software selectable

Differential mode can be used for voltage input and current input.

Single-Ended mode can be used for voltage input only.

Type: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V

±20 mA ,0 ~ 20 mA, 4 ~ 20 mA

(Jumper Selectable)

Resolution: 16-bit

Accuracy: ±0.1%

Sampling Rate: 10 Samples/Second (Total)

Input Impedance: Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)

Current: 125 Ω

Common Mode Rejection: 86 dB Min.

Normal Mode Rejection: 100 dB

Common Voltage Protection: ±200 VDC

Overvoltage Protection: Differential: 240 Vrms

Single-ended: 150 Vrms

Overcurrent Protection: Yes, 50 mA at 110 VDC

Individual Channel Configuration: Yes

Channel-to-Channel Isolation: Yes, 400 VDC

Open Wire Detection: Yes, for 4 ~ 20 mA only

Zero Drift: ±20 μV/°C

Span Drift: ±25 ppm/°C



Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 3.7 W

Powered from PoE: Yes, IEEE 802.3af, Class 1

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 97 x 120 x 42 (W x L x H)

Installation: Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
