WISE-7504M CR, Intelligent I/O Module with 2-port Ethernet Switch, 4-ch Analog input, 4-ch Analog output, 4-ch Digital input and PoE. Supports Modbus/TCP and MQTT

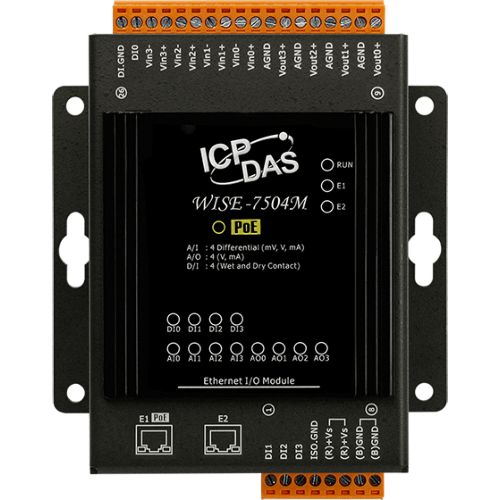

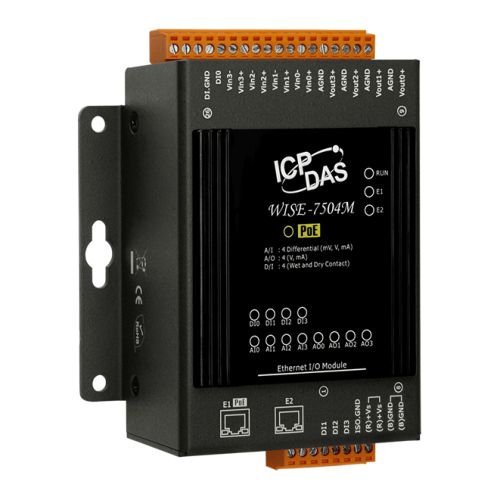

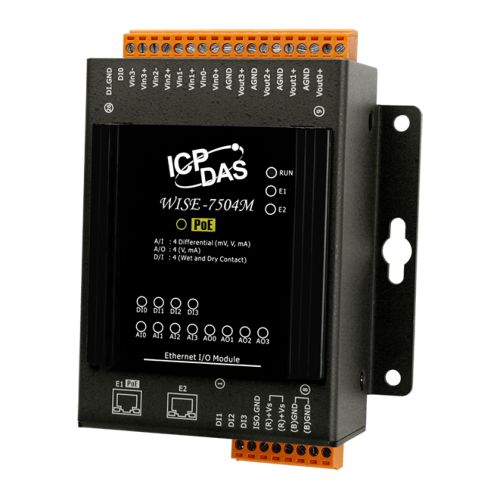

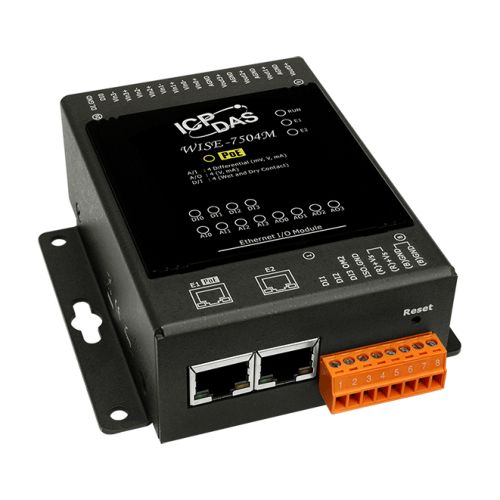

WISE-7504M CR
Intelligent I/O Module with 2-port Ethernet Switch, 4-ch Analog input, 4-ch Analog output, 4-ch Digital input and PoE. Supports Modbus/TCP and MQTT
Features
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (AI: 4 Channels; AO: 4 Channels; DI: 4 Channels).
- Support I/O channel monitoring/control, Timer, Schedule operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- MQTT Protocol for IT & IoT (Internet of Things) System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
- 2-port Ethernet Switch for Daisy-Chain Topology.
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.
WISE-7504M is a multi-function module with 4-channel analog inputs, 4-channel analog outputs and 4-channel digital inputs. It provides various programmable analog inputs, and analog outputs. Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. WISE-7504M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7504M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.
By integrating with IF-THEN-ELSE rule engine, WISE-7504M provides more powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7504M also supports Modbus TCP and MQTT protocol to make seamless integration with SCADA, IT and IoT (Internet of Things) system.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
Specifications
Software
Protocol
• Modbus TCP
• CGI Command (Sending)
• MQTT Client (non-SSL)
• Active I/O (MQTT Publish)
Function
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (72 rules supported)
• I/O channel monitoring and control
• Timer operation (24 set supported)
• Schedule operation (24 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (24 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization
CPU Module
CPU: 32-bit CPU (400 MHz)
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4): ±2 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5): ±2 kV for Power Line
LED Indicators
Status: 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
12 x I/O Channel Status
Analog Input
Channels: 4 (Differential)
Type: ±500 mV, ±1 V, ±5 V, ±10 V
+0 mA ~ +20 mA, ±20 mA, 4 ~ 20 mA
(Jumper Selectable)
Resolution: 16-bit
Accuracy: ±0.1%
Sampling Rate: 10 Samples/Second (Total)
Input Impedance: Voltage: 2 MΩ
Current: 125 Ω
Common Mode Rejection: 86 dB Min.
Normal Mode Rejection: 100 dB
Common Voltage Protection: ±200 VDC
Overvoltage Protection: 240 Vrms
Overcurrent Protection: Yes, 50 mA Max. at 110 VDC/VAC Max
Individual Channel Configuration: Yes
Channel-to-Channel Isolation: Yes, 400 VDC
Open Wire Detection: Yes, for 4 ~ 20 mA only
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C
Analog Output
Channels: 4
Type: +0 VDC ~ +5 VDC, ±5 VDC, +0 VDC ~ +10 VDC,±10 VDC
+0 mA ~ +20 mA, +4 mA ~ +20 mA
(Jumper Selectable)
Resolution: 12-bit
Accuracy: ±0.1% of FSR
Open Wire Detection: Yes, for 4 ~ 20 mA only
Voltage Output Capability: 20 mA @ 10 V
Current Load Resistance: 400 Ω
Digital Input/Counter
Channels: 4
Type: Dry + Wet Contact
ON Voltage Level: Dry: Close to GND
Wet: +1 VDC Max.
OFF Voltage Level: Dry: Open
Wet: +3.5 VDC ~ +30 VDC
Max. Counts: 16-bit (65535)
Frequency: 50 Hz
Min. Pulse Width: 10 ms
Effective Distance: 500 M Max.
Overvoltage Protection: +30 VDC
Ethernet
Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)
PoE: Yes
Power
Reverse Polarity Protection: Yes
Input Range: 12 ~ 48 VDC
Consumption: 5.1 W
Powered from PoE: Yes, IEEE 802.3af, Class 1
Powered from Terminal Block: Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm): 97 x 120 x 42 (W x L x H)
Installation: Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
