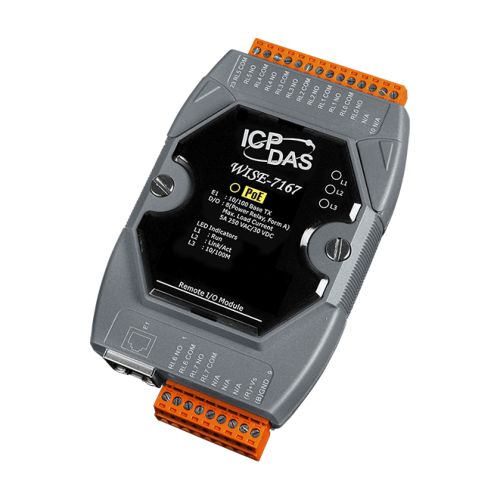

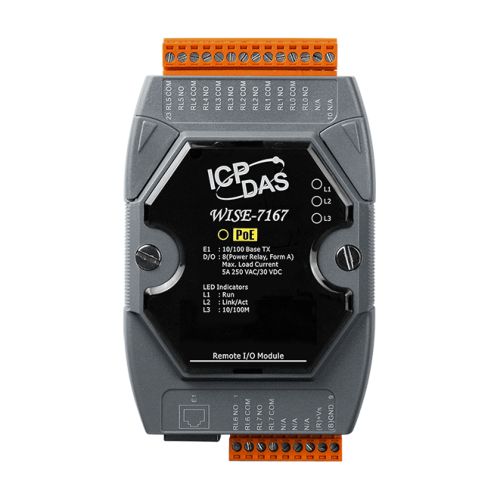

WISE-7167 CR ICP DAS WISE IO Modules

Runs on browsers, no extra software tool is required.

No more programming, Web pages provided for control logic editing.

IF-THEN-ELSE logic rules execution ability.

Built-in I/O (DO: 8-channels Power Relay).

Support I/O channel monitoring/control, Timer operations.

Support non-SSL Email sending and CGI Command sending operations.

Modbus TCP Protocol for SCADA System Integration.

IEEE 802.3af-compliant Power over Ethernet (PoE).



WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.



WISE-7167 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7167 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.



This module WISE-7167 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 8-channel power relay outputs. Each power relay supports contact rating as 5 A @ 250 VAC or 5 A @ 30 VDC.



Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP

• CGI Command (Sending)



• Web Interface for Configuration

• IF-THEN-ELSE Logic operation (36 rule supported)

• I/O channel monitoring and control

• Timer operation (12 set supported)

• Internal Register operation (48 set supported)

• Recipe operation (12 set supported)

• Advanced P2P (8 set supported)

• non-SSL Email sending function



CPU: 16-bit CPU (80 MHz)



Intra-module Isolation: 3000 VDC



EFT (IEC 61000-4-4): ±2 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±0.5 kV for Power Line



Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

1 x Ethernet 10/100M Speed



Channels: 8

Type: Power Relay, Form A (SPST N.O.)

Contact Rating: 5 A @ 250 VAC/24 VDC (Resistive Load)

Operate Time: 10 ms (max.)

Release Time: 5 ms (max.)

Electrical Endurance: 100,000ops.

Mechanical Endurance: 20,000,000 ops.



Ports: RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 3.3 W

Powered from PoE: Yes, IEEE 802.3af, Class 1

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 72 x 123 x 35 (W x L x H)

Installation: DIN-Rail Mounting/Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
