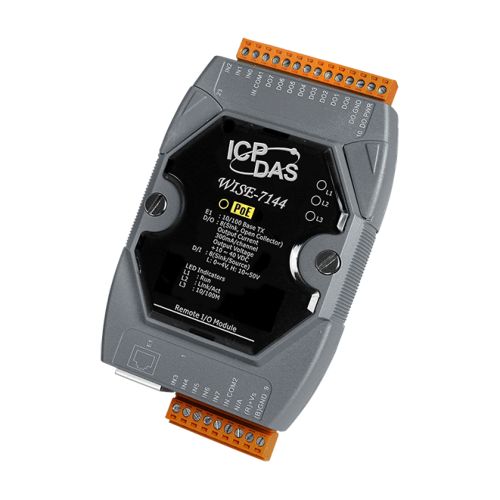

WISE-7144 CR, Intelligent I/O Module with 8-ch Digital input, 8-ch Digital output and PoE
WISE-7144 CR
Intelligent I/O Module with 8-ch Digital input, 8-ch Digital output and PoE
Free Shipping
Features
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (DI: 8-channels; DO: 8-channels).
- Support I/O channel monitoring/control, Timer operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7144 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7144 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This module WISE-7144 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 8-channel isolated open collector outputs and 8-channel isolated wet contact digital inputs. Each output channel supports 300mA current driving +10 ~ 40 VDC and each digital input channel supports counter input.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
Specifications
Software
Protocol
• Modbus TCP
• CGI Command (Sending)
Function
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
CPU Module
CPU: 16-bit CPU (80 MHz)
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point
LED Indicators
Status: 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed
Digital Input/Counter
Channels: 8
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: +10 VDC ~ +50 VDC
OFF Voltage Level: +4 VDC Max.
Max. Counts: 16-bit (65535)
Frequency: 50 Hz
Min. Pulse Width: 10 ms
Input Impedance: 10 kΩ
Overvoltage Protection: +70 VDC
Digital Output
Channels: 8
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +10 VDC ~ +40 VDC
Load Current: 300 mA/Channel at 25 °C
Direct drive power relay module
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A
Short-circuit Protection: Yes
Ethernet
Ports: RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X
PoE: Yes
Power
Reverse Polarity Protection: Yes
Input Range: 12 ~ 48 VDC
Consumption: 2.5 W
Powered from PoE: Yes, IEEE 802.3af, Class 1
Powered from Terminal Block: Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm): 72 x 123 x 35 (W x L x H)
Installation: DIN-Rail Mounting/Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
