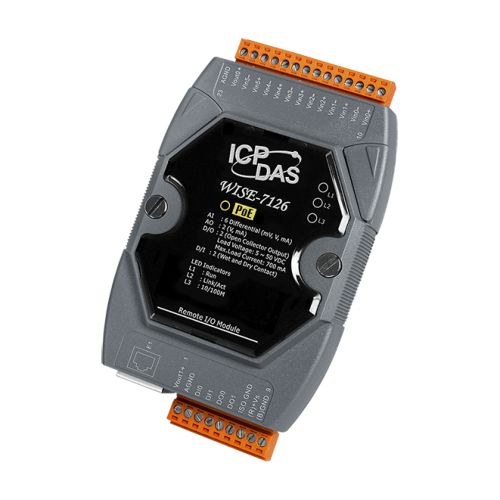

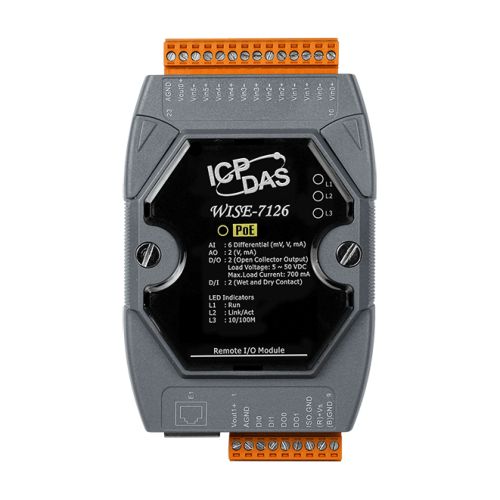

WISE-7126 CR, Intelligent I/O Module with 6-ch Analog input, 2-ch Analog output, 2-ch Digital input, 2-ch Digital output and PoE
WISE-7126 CR
Intelligent I/O Module with 6-ch Analog input, 2-ch Analog output, 2-ch Digital input, 2-ch Digital output and PoE
Free Shipping
Features
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (AI: 6-channels; AO: 2-channels; DI: 2-channels; DO: 2-channels).
- Support I/O channel monitoring/control, Timer operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7126 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7126 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This multi-function module WISE-7126 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. Each analog input channel provides 240 Vrms high over voltage protection.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
Specifications
Software
Protocol
• Modbus TCP
• CGI Command (Sending)
Function
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
CPU Module
CPU: 16-bit CPU (80 MHz)
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection:
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5): ±0.5 kV for Power Line
LED Indicators
Status: 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed
Analog Input
Channels: 6 (Differential)
Type: ±500 mV, ±1 V, ±5 V, ±10 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Jumper Selectable)
Resolution: 16-bit
Accuracy: ±0.1%
Sampling Rate: 10 Sample/Sec. (Total)
Input Impedance: Voltage: 2 MΩ
Current: 125 Ω
Common Mode Rejection: 86 dB Min.
Normal Mode Rejection: 100 dB
Common Voltage Protection: ±200 VDC
Overvoltage Protection: 240 Vrms
Overcurrent Protection: 50 mA Max. at 110 VDC/VAC Max.
Individual Channel Configuration: Yes
Channel-to-Channel Isolation: ±400 VDC
Open Wire Detection: Yes, for 4 ~ 20 mA only
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C
Analog Output
Channels: 2
Type: 0~5 VDC, ± 5 VDC, 0~10 VDC, ± 10 VDC
0~20 mA, 4~20 mA
(Jumper Selectable)
Resolution: 12-bit
Accuracy: ±0.1% of FSR
Open Wire Detection: Yes, for 4 ~ 20 mA only
Voltage Output Capability: 20 mA @ 10 V
Current Load Resistance: 500 Ω
Digital Input/Counter
Channels: 2
Type: Dry + Wet Contact
Sink/Source (NPN/PNP): Dry: Source
Wet: Sink/Source
ON Voltage Level: Dry: Close to GND
Wet: +1 VDC Max.
OFF Voltage Level: Dry: Open
Wet: + 3.5 VDC ~ + 30 VDC
Max. Counts: 16-bit (65535)
Frequency: 50 Hz
Min. Pulse Width: 10 ms
Effective Distance: 500M Max.
Overvoltage Protection: +30 VDC
Digital Output
Channels: 2
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +5 VDC ~ +50 VDC
Load Current: 700 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A
Short-circuit Protection: Yes
Ethernet
Ports: RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X
PoE: Yes
Power
Reverse Polarity Protection: Yes
Input Range: 12 ~ 48 VDC
Consumption: 3.9 W
Powered from PoE: Yes, IEEE 802.3af, Class 1
Powered from Terminal Block: Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm): 72 x 123 x 35 (W x L x H)
Installation: DIN-Rail Mounting/Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
