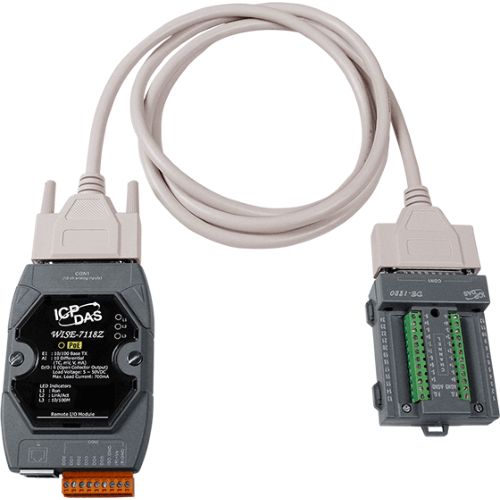

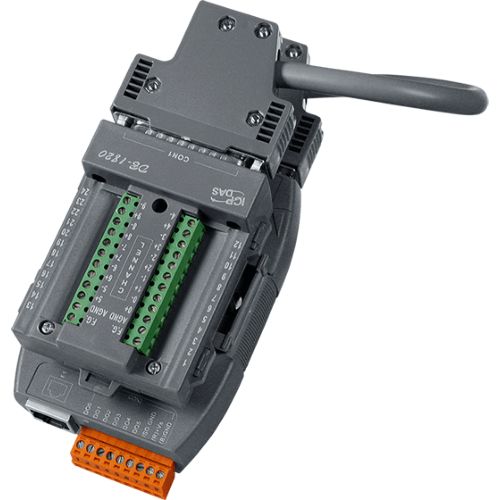

WISE-7118Z/S CR, Intelligent I/O Module with 10-ch Thermocouple Input and 6-ch Digital output and PoE Includes DB-1820 Daughter Board
WISE-7118Z/S CR
Intelligent I/O Module with 10-ch Thermocouple Input and 6-ch Digital output and PoE Includes DB-1820 Daughter Board
Free Shipping
Features
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (AI: 10-channels Thermocouple Input; DO: 6-channels).
- Support I/O channel monitoring/control, Timer operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7118Z/S follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7118Z/S will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This multi-function module WISE-7118Z/S supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 16-bit, 10-channel differential analog inputs and 6-channel digital ouputs. Each analog channel is allowed to configure an individual range and has 240 Vrms high over voltage protection.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
Specifications
Software
Protocol
• Modbus TCP
• CGI Command (Sending)
Function
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
CPU Module
CPU: 16-bit CPU (80 MHz)
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection:
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point
LED Indicators
Status: 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed
Analog Input
Channels: 10 (Differential)
Type: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M,LDIN43710)
Temperature Output Consistency: Yes
Stable Temperature Output in the Field: Yes
Resolution: 16-bit
Accuracy: ±0.1% of FSR or better
Sampling Rate: 10 Sample/Sec. (Total)
Input Impedance: >300 kΩ
Common Mode Rejection: 150 dB Min.
Normal Mode Rejection: 100 dB
Overvoltage Protection: 240 Vrms
Individual Channel Configuration: Yes
Channel-to-Channel Isolation: ±400 VDC
Open Wire Detection: Yes
Zero Drift: ±0.5 μV/°C
Span Drift: ±25 ppm/°C
Digital Output
Channels: 6
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +5 VDC ~ +50 VDC
Load Current: 700 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A
Short-circuit Protection: Yes
Ethernet
Ports: RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X
PoE: Yes
Power
Reverse Polarity Protection: Yes
Input Range: 12 ~ 48 VDC
Consumption: 3.0 W
Powered from PoE: Yes, IEEE 802.3af, Class 1
Powered from Terminal Block: Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm): 72 x 123 x 35 (W x L x H)
Installation: DIN-Rail Mounting/Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
