WISE-7102 CR

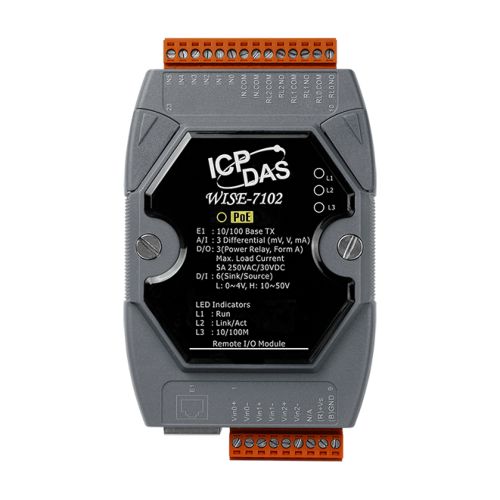

Intelligent I/O Module with 3-ch Analog input, 6-ch Digital input, 3-ch Power Relay and PoE



€ 322,00

(VAT excluded)

€ 392,84(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 392,84

Availability: 15 business days

SKU: 118737

Model: WISE-7102 CR

Need Help?


Runs on browsers, no extra software tool is required.
No more programming, Web pages provided for control logic editing.
IF-THEN-ELSE logic rules execution ability.
Built-in I/O (AI: 3-channels; DO: 3-channels Power Relay; DI: 6-channels).
Support I/O channel monitoring/control, Timer operations.
Support non-SSL Email sending and CGI Command sending operations.
Modbus TCP Protocol for SCADA System Integration.
IEEE 802.3af-compliant Power over Ethernet (PoE).


WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7102 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7102 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This multi-function module WISE-7102 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 3-channels analog inputs, 6-channels digital inputs and 3-channels Power Relay outputs. Each analog input channel provides 240 Vrms high over voltage protection.


Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP
• CGI Command (Sending)
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function

CPU Module

CPU: 16-bit CPU (80 MHz)


Intra-module Isolation: 2500 VDC

EMS Protection

EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5): ±0.5 kV for Power Line

LED Indicators

Status: 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed

Analog Input

Channels: 3 (Differential)
Type: ±150mv, ±500mv, ±1 V, ±5 V, ±10 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Jumper Selectable)
Resolution: 16-bit
Accuracy: ±0.1%
Sampling Rate: 10 Sample/Sec. (Total)
Input Impedance: Voltage: 2 MΩ
Current: 125 Ω
Common Mode Rejection: 86 dB Min.
Normal Mode Rejection: 100 dB
Overvoltage Protection: 240 Vrms
Overcurrent Protection: Yes, 50 mA max. at 110 VDC/VAC max.
Individual Channel Configuration: Yes
Open Wire Detection: Yes, for 4 ~ 20 mA only
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C

Digital Input/Counter

Channels: 6
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: +10 VDC ~ +50 VDC
OFF Voltage Level: +4 VDC Max.
Max. Counts: 16-bit (65535)
Frequency: 50 Hz
Min. Pulse Width: 10 ms
Input Impedance: 10 KΩ, 0.5W
Overvoltage Protection: +70 VDC

Relay Output

Channels: 3
Type: Power Relay, Form A (SPST N.O.)
Contact Rating: Operating Voltage Range: 250 VAC/30 VDC
Max Load Current: 5.0A/channel at 25°C
Intra-module Isolation, Field to Logic: 3750 VDC
Operate Time: 6 ms (Typical)
Release Time: 3 ms (Typical)
Electrical Endurance: VDE:
5 A @ 250 VAC 30,000 ops. (10 ops./minute) at 75°C
5 A @ 30 VDC 70,000 ops. (10 ops./minute) at 75°C
5 A @ 250 VAC/30 VDC 6,000 ops.
3 A @ 250 VAC/30 VDC 100,000 ops.
Mechanical Endurance: 20,000,000 ops. at no load (300 ops./minute)


Ports: RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X
PoE: Yes


Reverse Polarity Protection: Yes
Input Range: 12 ~ 48 VDC
Consumption: 3.4 W
Powered from PoE: Yes, IEEE 802.3af, Class 1
Powered from Terminal Block: Yes, 12 ~ 48 VDC


Dimensions (mm): 72 x 123 x 35 (W x L x H)
Installation: DIN-Rail Mounting/Wall Mounting


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
