WISE-5801-MTCP CR, Intelligent User-defined I/O Module with SMS Function for Modbus TCP Devices

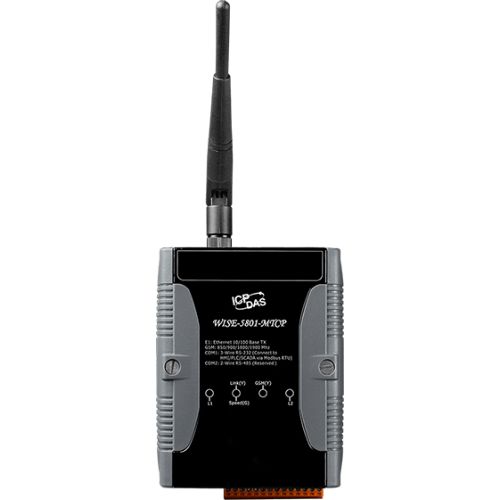

WISE-5801-MTCP CR
Intelligent User-defined I/O Module with SMS Function for Modbus TCP Devices
Free Shipping
Features
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Support XW-Board.
- Support Modbus TCP Slave Devices(Up to 7).
- Support I/O channel monitoring/control, Timer, Schedule, Recipe operations.
- Support non-SSL Email sending, CGI Command sending operations.
- Data logger and data files send back function supported.
- Modbus TCP/RTU Protocol for SCADA Software Seamless Integration.
- Support SMS (GSM: Quad-band 850/900/1800/1900 MHz).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-5801-MTCP supports an I/O expansion bus to implement various I/O functions such as D/I, D/O, A/D and D/A according to the XW-Board. In addition, WISE-5801-MTCP also supports Modbus TCP slave devices. Based on the connection ability with Modbus TCP slave devices, WISE-5801-MTCP can provide user more flexibility in application field.
WISE-5801-MTCP supports Modbus TCP/RTU protocol to make seamless integration with SCADA software available. It includes all advantages which WISE series controllers can provide. In addition, WISE-5801-MTCP provides data logger function with microSD card, it can record I/O channel value by event trigger or regular time period. The data files can be sent back by Email or FTP. WISE-5801-MTCP also features SMS sending function for alarm report and SMS command receiving function. All setting can be completed through browser.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
Specifications
Software
Protocol
• Modbus TCP & Modbus RTU
• FTP Client
• CGI Command (Sending)
• Active I/O (Modbus TCP Master)
Function
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Schedule operation (12 set supported)
• Data Logger operation (1 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• non-SSL Email sending function
• SMS message sending function
• SNTP Time Synchronization
CPU Module
CPU: 16-bit CPU (80 MHz)
Storage Expansion: Support 1G/2G/4G/8G/16G/32G microSD card
LED Indicators
Status: 1 x System Status
1 x MicroSD Card Status
1 x Ethernet Link Status
2G System
Frequency Band: Quad-band 850/900/1800/1900 MHz
SMS Mode: Text and Unicode mode
I/O Expansion
I/O Type: XW-board
Remote Module Support: Modbus TCP Slave Module
COM Ports
Ports: COM 1: RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max.
COM 2: RS-485 (Data+, Data-) with internal self-tuner ASIC; non-isolated, Speed: 115200 bps max. (Reserved)
Ethernet
Ports: RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Power
Reverse Polarity Protection: Yes
Input Range: 12 ~ 48 VDC
Redundant Power Inputs: Yes
Consumption: Idle: 2.0 W; Data Link: 150 ~ 400 mA (peak) @ 24 VDC
Mechanical
Dimensions (mm): 91 × 123 × 52 (W x H x D)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
