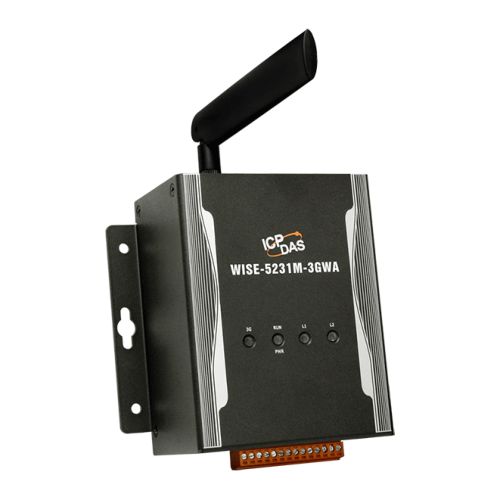

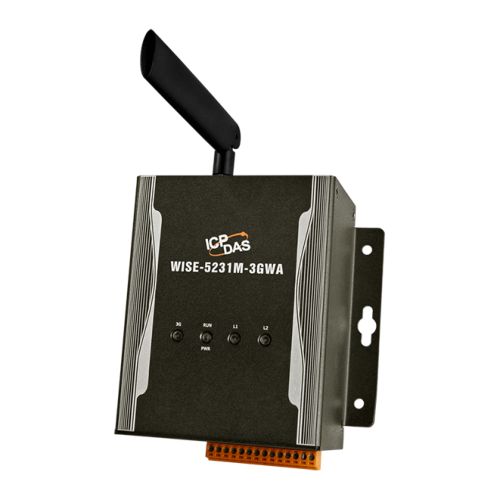

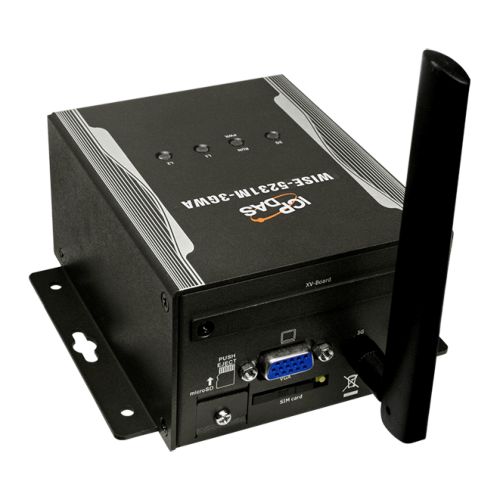

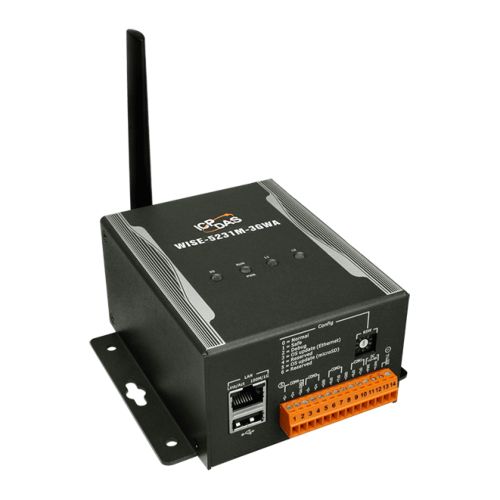

WISE-5231M-3GWA CR ICP DAS WISE IO Modules

Runs on browsers, no extra software tool is required.

No more programming, Web pages provided for control logic editing.

IF-THEN-ELSE logic rules execution ability.

Support XV-board.

Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).

Support Modbus TCP Slave modules (Up to 16).

Timer and Schedule functions supported.

Data logger and data files send back function supported.

Active I/O sending function for real-time data transfer.

CGI Command sending and receiving function supported for IP Camera and Network device.

Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.

Support LINE, SMS and Email real-time message sending.

Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix).

Support IoTstar Cloud Management Software.

Support 3G wireless data communication.



WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending functions.



WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration. It allows connection to XV-board, DCON I/O modules, and Modbus TCP/RTU Slave modules all together. The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker. WISE also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE the best choice in the IoT Age.



Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.



• Modbus TCP & Modbus RTU

• FTP Client & Server

• SNMP & SNMP Trap

• MQTT Client (Message Publish & Subscribe; non-SSL & SSL)

• CGI Command (Sending & Receiving)

• Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap)

• DDNS



• Web Interface for Configuration

• IF-THEN-ELSE Logic operation (Unlimited rule supported)

• I/O channel monitoring and control

• Timer operation (Unlimited set supported)

• Schedule operation (More Powerful; Unlimited set supported)

• Data Logger operation (Unlimited set supported)

• Internal Register operation (100 set supported)

• Recipe operation (Unlimited set supported)

• Instant message sending function (LINE Notify)

• non-SSL & SSL Email sending function

• SMS message sending function

• SNTP Time Synchronization



• ICP DAS IoTstar IoT Cloud Management Software

• Microsoft Azure IoT Cloud platform

• IBM Bluemix IoT Cloud platform



CPU: 32-bit ARM CPU (1.0 GHz)

Storage Expansion: Built-in one 4 GB microSD card (support up to 32 GB microSDHC card)



Status: 1 x Power/Running

1 x Modem Status

1 x Mobile Network Status



Frequency Band: GSM: 850/900/1800/1900 MHz

GPRS Connectivity: GPRS class 12/10; GPRS station class B



Data Transmission Rate: WCDMA / HSPA+; Download: Max. 14.4 Mbps; Upload: Max. 5.76 Mbps

Frequency Band: WCDMA 850/900/1900/2100 MHz



I/O Type: XV-board

Remote Module Support: I-7000/M-7000/tM/DL/LC/SC/IR Series Module

WISE-7100/(P)ET-7000/WF-2000 Series Module

Modbus RTU Slave Module

Modbus TCP Slave Module

IP Camera: iCAM Series Module



Ports: COM 1: Reserved

COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max.

COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max.

COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max.



Ports: RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)



Input Range: 12 ~ 48 VDC

Consumption: 6.5W



Dimensions (mm): 117 × 126 × 58 (W x L x H)

Installation: DIN-Rail Mounting/Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
