WDT-03 CR, Intelligent Watchdog Timer Board Includes one CA-0205 (2-pin Black and Red Cable, 0.5 m) and one CA-0910F (9-pin Female-Female D-sub Cable, 1.0 m)
WDT-03 CR
Intelligent Watchdog Timer Board Includes one CA-0205 (2-pin Black and Red Cable, 0.5 m) and one CA-0910F (9-pin Female-Female D-sub Cable, 1.0 m)
Features
- 3-channel of digital input terminal
- 3-channel of relay output
- Connects directly to WDT-03 (Only the versions that come out after version5.2, including version 5.2 support DB-3R)
- The Relay output of specifications:
- Channels : 3 (Form "A", Normal Open)
- Max. Switching voltage : 220Vdc, 250 VAC
- Max. Switching current : 2 A
- Max. Carrying current : 2 A
- Surge Strength : 1,500 V
- Electrical endurance :
- Typical 500,000 operation at 30 VDC / 1 A
- Typical 100,000 operation at 125 VAC / 0.5 A
- Relay on time (typical) : 6 ms
- Relay off time (typical) : 6 ms
- Pin to Pin screw terminal for D-Sub (From the CN2 of WDT-03)
- Pitch : 5.08 m/m
- Dimension : 103 mm x 86 mm
Introduction

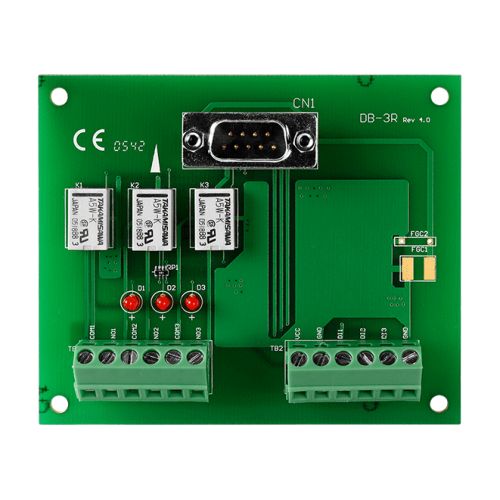

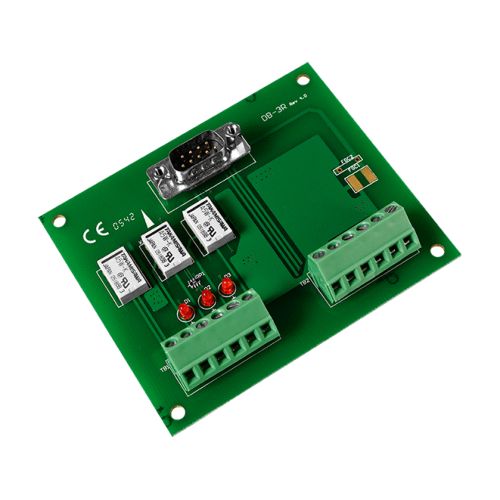

The DB-3R is a 3-channel of digital input terminal and 3-channel of relay output daughter board for WDT-03.
Specifications
Digital Input
Channels: 3
Digital Output
Channels: 3
Mechanical
Dimensions (mm): 103 mm x 86 mm
