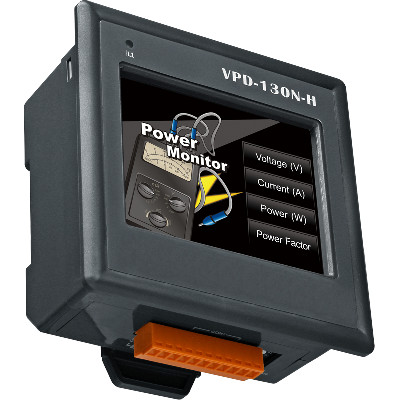

VPD-130N-H CR ICP DAS TouchPAD

• Excellent C/P ratio (cost/performance)
• High-resolution color touch screen
• RTC (Real Time Clock)
• Supports 1 Serial Port (RS-232/RS-485, including Self-Tuner)
• Rubber Keypad
• GUI design
• Free HMIWorks development tool
• Supports the popular C programming language and Ladder Designer
• Supports the custom communication protocol (C language)
• ESD Protection: 4 kV
• Operating temperature: -20 ~ 50°C
• Front Panel: IP65 Waterproof

Introduction

VPD industrial touch HMI device series features, 3.5" high resolution color touch screen LCD. With touchscreen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods. Its built-in communication ports include RS-232/RS-485, and USB interface, enable integration into the system allowing users to control, monitor I/O at the remote sides and update firmware directly from the central computer. Besides, the built-in non-volatile storage makes VPD series more reliable for rugged environments.

HMIWorks, the free development software for VPD series, provides an easy-to-use environment, and powerful and intuitive programming with graphic capabilities to let users create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program when using Ladder Designer. With all the features provided, VPD series touch HMI Devices must be the most cost effective HMI Device ever been in the market.

SPECIFICATIONS

CPU Module
CPU: 32-bit RISC CPU
Memory Expansion: 16 MB SDRAM / 16 MB Flash
Real Time Clock (RTC): Yes
Buzzer: Yes
Rotary Switch (0~9): Yes

Communication Interface
Serial Port: x 1 (RS-232/RS-485 including Self-Tuner)
USB 1.1 Client: Firmware update only

I/O Expansion
I/O Expansion Bus: Yes

MMI (Main Machine Interface)
LCD: 3.5” TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life: 20,000 hours
Brightness: 270 cd/m2
LED Indicator: -
Touch Panel: Yes
Reset Button: Yes
Rubber Keypad: -

Electrical
Powered from Terminal Block: +12 ~ 48 VDC
Powered from PoE: -
Power Consumption: 2 W

Mechanical
Dimensions (W x L x H): 103 mm x103 mm x 53 mm
Ingress Protection: Front Panel: IP65
Installation: DIN-Rail Mounting and Panel Mounting

Environmental
Operating Temperature: -20 ~ +50°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
