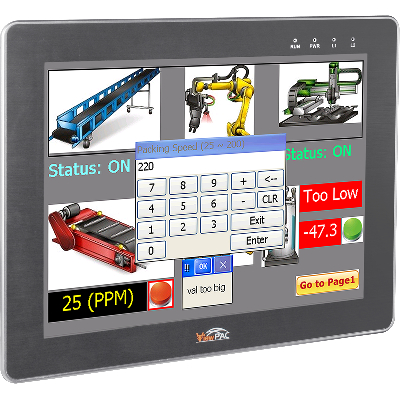

VP-6238-CE7 CR ICP DAS ViewPAC

VP-6238-CE7 CR ICP DAS

VP-6238-CE7 CR ICP DAS

VP-6238-CE7 CR

15 Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots

Quantity:

Price

€ 1.719,13

(VAT excluded)

€ 2.097,34(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 2.097,34

Availability: 15 business days

SKU: 110772

Model: VP-6238-CE7 CR

Need Help?


  • 5.7"/10.4"/15" TFT LCD
  • Cortex-A8 CPU (32-bit & 1 GHz)
  • Windows CE.NET 7.0 Inside
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • Hard Real-Time Capability
  • 3 Slots for High Profile I/O Modules
  • IP65 Compliant Front Panel
  • Modbus RTU/TCP (Master, Slave)
  • 64-bit Hardware Serial Number for Software Protection
  • Audio with Microphone-In and Earphone-Out
  • Operating Temperature: -20 ~ +70 °C

INTRODUCTION

The Win-GRAF ViewPAC Series (VP-1238-CE7, VP-4238-CE7, VP-6238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. Each VP-1238-CE7 is equipped with a Cortex-A8 CPU (32-bit & 1 GHz) running a Windows CE 7.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 5.7" /10.4" /15" TFT LCD with a rubber keypad.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.

PAC SPECIFICATIONS

MMI (Man Machine Interface)
LCD: 15" TFT (Resolution 1027 x 768)
Touch Panel: Yes
Rubber Keypad: -
Audio: Microphone-In and Earphone-Out
LED Indicators: 2 Dual-Color LEDs (PWR, RUN)

System Software
OS: Windows CE.NET 7.0
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided: Dll for VC, Dll for Visual Studio.Net 2008
Multilanguage Support: English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese

Development Software
Win-GRAF Software:  Win-GRAF: IEC 61131-3 standard

Languages: LD, ST, FBD, SFC, IL

Max. Code Size: 2 MB

Scan Time: 3 ~ 15 ms for normal program

15 ~ 50 ms (or more) for complex or large program

Non-Win-GRAF: Options: VS .NET 2008 (VB.NET, C# .NET)

CPU Module
CPU: Cortex-A8 (32-bit and 1 GHz)
SDRAM: 512 MB
MRAM: 128 KB
Flash: 256 MB
EEPROM: 16 KB
Expansion Flash Memory: microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079
64-bit Hardware Serial Number: Yes, for software copy protection
Dual Watchdog Timer: Yes
Rotary Switch: Yes (0 ~ 9)

Communication Interface
Ethernet Port: RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 2
USB 2.0 (client): 1
COM 0: Internal communication with I-87K modules in slots
COM 2: RS-485 (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated.
COM 3: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated

I/O Expansion Slots
Slot Number: 3 (For High Profile I-8K and I-87K Modules Only)

Mechanical
Dimensions (W x L x H): 381 mm x 305 mm x 139 mm
Panel Cut-out (W x H): 366 mm x 290 mm ± 1.0 mm
Ingress Protection: Front panel: IP65

Environmental
Operating Temperature: -20 °C ~ +70 °C
Storage Temperature: -30 °C ~ +80 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing

Power
Input Range: +10 ~ +30 VDC (Redundant Power Inputs)
Isolation: 1 kV
Capacity: 2.5 A, 5 V supply to I/O expansion slots
Consumption: 0.65 A @ 24 VDC
