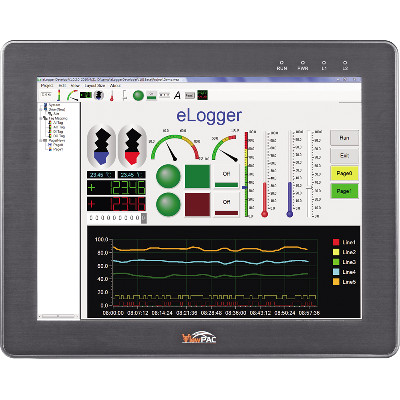

VP-6231-CE7 CR
15 Standard ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots
- 5.7", 10.4 and 15" TFT LCD
- Cortex-A8, 32-bit and 1 GHz CPU
- CE7 (Windows Embedded Compact 7)
- Hard Real-Time Capability
- 64-bit Hardware Serial Number
- Support eLogger HMI (free)
- Dual Watchdog Timers7
- Ultra-Rugged Construction and Reliable Design
- Operating Temperature: -20 °C to +70 °C
Introduction
The VP-x231-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and
control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU,
TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local I/O slots are
available to use our I-8K and I-87K series I/O modules and remote I/O expansion is available
to use our Ethernet I/O modules and RS-485 I/O modules. Designed to operate over a wide
-10 °C to 60 °C ambient temperature range, the fanless design offers the ultimate in reliability
with no moving parts.
Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and
highly reliable operating system. CE7 delivers rich user experiences and a unique connection
to Windows PCs, servers, services, and devices.
Windows Embedded Compact 7
CE7 is a compact and hard real-time OS used to quickly create time critical and high
performance applications. Using CE7 gives an ability to run PC-based control software such
as Visual Basic .NET, Virtual C#, SCADA software, SoftPLC… etc.
● Support PC based software: Visual Studio .NET
● Web server, FTP server, Telnet server
Specifications
LCD Display
Diagonal Size: 15"
Resolution: 1024 x 768
Touch Panel: Yes
Rubber Keypad: -
System Software
OS: Windows CE 7.0
Framework Support: .NET Compact Framework 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio.Net 2008
Multilanguage Support: English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
CPU Module
CPU: Cortex-A8 (32-bit and 1.0 GHz)
SDRAM: 512 MB
MRAM: 128 KB
Flash (SSD): 256 MB
EEPROM: 16 KB
Expansion Flash Memory: microSD socket with one microSD card (support up to 32 GB)
RTC (Real Time Clock) Yes, provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for software copy protection
Dual Watchdog Timers: 0.8 second
LED Indicator: 2 Dual-Color LEDs (Run and PWR)
Rotary Switch: Yes, 0 ~ 9

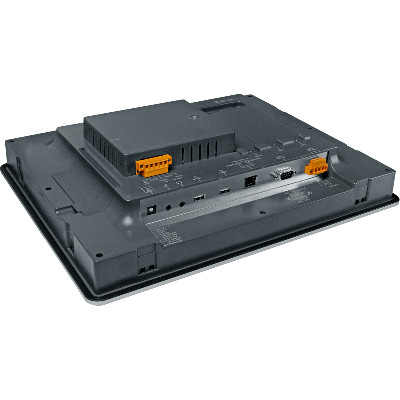

Communication Ports
Ethernet: RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 3
COM2 RS-485: (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated
COM3 RS-232: (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated
Audio: Microphone-In and Earphone-Out

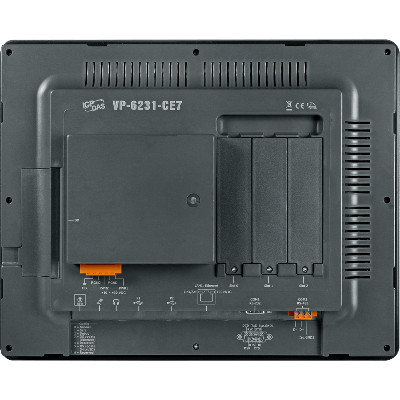

I/O Expansion Slots
Slot Number: 3 (COM0, for high profile I-8K and I-87K modules only)
Mechanical
Dimensions (W x H x D): 381 mm x 139 mm x 305 mm
Panel Cut-out (W x H): 366 mm x 290 mm + 1.0 mm
Ingress Protection: Front panel: IP65
Environmental
Operating Temperature: -20 °C to +70 °C
Storage Temperature: -30 °C to +80 °C
Ambient Relative Humidity: 10 % to 90 % RH (non-condensing)
Power
Input Range: +10 VDC to +30 VDC
Redundant Power Inputs: Yes
Isolation: 1 kV
Consumption: 0.65 A @ 24 VDC
