VP-4239-CE7 CR

10.4 LCD InduSoft (300 tags) Based ViewPAC with 3 I/O slots (WinCE 7.0)



€ 1.970,42

(VAT excluded)

€ 2.403,91(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 2.403,91

Availability: 15 business days

SKU: 110808

Model: VP-4239-CE7 CR

Need Help?

In addition to the many alarm functions you expect from InduSoft Web Studio, v7.1 also sends online alarms or reports using multi-media formats like PDF.Alarms are real-time and historical; log data in binary format or to any database. Use remote notification to have alarms sent right to your inbox, printer, or smartphone! Custom Alarm fields allow you to customize up to 10 additional fields to the history of alarms.
 Recipe / Report
Save time and maintain consistency by automating part parameters or production quantities with flexible recipe management tools. Create clear, concise reports in plain text, RTF, XML, PDF, HTML, and CSV or integrate with Microsoft Office programs such as Excel. Get the data you need, in the format you need it, to make informed decisions, fast. InduSoft has also partnered with Ocean Data Systems to offer further reporting capabilities through Dream Report for Indu-Soft Web Studio, available as an add-on.
Real-time and Historical trends, and SPC functionality are supported. Log data in binary format. or to any local or remote SQL database. Color or fill trends with graphic elements to enhance clarity of data. Date/Time based or numeric (X/Y plot) trends give you the flexibility to display information that best suits your application. InduSoft Web Studio supports vertical and horizontal trending.
Connect to any SQL database (MS SQL, MySQL, Sybase, Oracle), or MS Access or Excel, and ERP/MES systems (including SAP), even from Windows Embedded CE. InduSoft Web Studio is flexible, offering a built in interface that doesn’t require knowledge of SQL (for trends, alarms/events, grid and other objects). Use any SQL statement you need, anywhere you need it.
 Driver / OPC
Provides over 240 native communication drivers for PLCs, temperature controllers, motion controllers, bar code/2D/RFID readers, and many other devices. Use these built in drivers, or connect to an OPC server. InduSoft driver toolkits even allow you the flexibility to build your own drivers.
 Thin Clients
Remotely view screens as web pages using Internet Explorer web browser, or InduSoft Secure Viewer. Without installing any additional software and provide embedded firewall, remote client command disabled and login authority functions to protect the system security.


  • Cortex-A8 CPU (32-bit & 1 GHz)
  • IP65 Compliant Front Panel

  • 5.7"/10.4"/15" TFT LCD (5.7/10.4/15 LCDs are with Touch Panel)
  • Rubber Keypad with 6 Keys
  • Audio with MIC-In and Line-Out
  • 64-bit Hardware Serial Number for Software Protection
  • 3 Slots for High Profile I/O Modules
  • Rich I/O Expansion Ability
    • Ethernet
    • RS-232/422/485
    • FRnet
    • CAN bus
  • MRAM (128 KB)
  • One Ethernet Port
  • 2 Serial Ports (RS-232, RS-485)
  • Operating Temperature: -20 ~ +70 °C

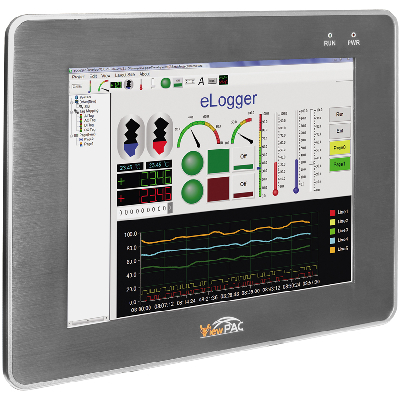

VP-1239-CE7 / VP-4239-CE7 / VP-6239-CE7 is the new generation WinCE based InduSoft PAC of ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a Cortex-A8 CPU (1GHz) running Windows CE .NET 7.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 5.7" TFT LCD and a rubber keypad.
Its operating system, Windows CE .NET 7.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. InduSoft Web Studio Runtime is also pre-installed. InduSoft Web Studio is a powerful, integrated collection of automation tools that includes all the building blocks needed to develop modern Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, and embedded instrumentation and control applications.
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.


System Software
OS: Windows CE.NET 7.0
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided: Dll for VC, Dll for Visual Studio.Net 2008
Develoment Software
InduSoft Software: InduSoft Web Studio Runtime
Web Service
Web HMI: Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem.
Security: Web HMI supports three levels user name and password protection
CPU Module
CPU: Cortex-A8 (32-bit and 1 GHz)
MRAM: 128 KB
Flash: 256 MB

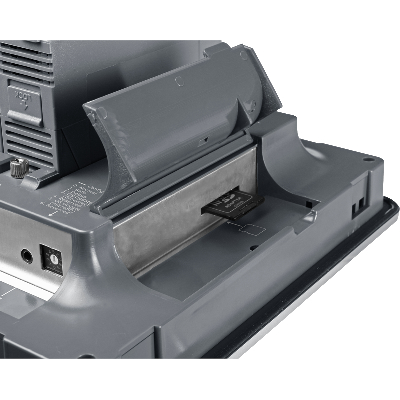

Expansion Flash Memory: microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079
64-bit Hardware Serial Number: Yes
Dual Watchdog Timer: Yes
Rotary Switch: Yes (0 ~ 9)

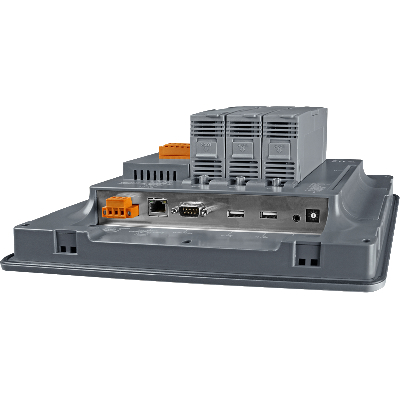

Communication Interface
Ethernet Port: RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 2
USB 2.0 (client): 1
COM 0: Internal communication with I-87K modules in slots
COM 2: RS-485 (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated.
COM 3: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated
MMI (Man Machine Interface)

LCD: 10.4" TFT (Resolution 800 x 600)
Touch Panel: Yes
Rubber Keypad: -
Audio: Earphone-Out
LED Indicators: 2 Dual-Color LEDs (PWR, RUN)

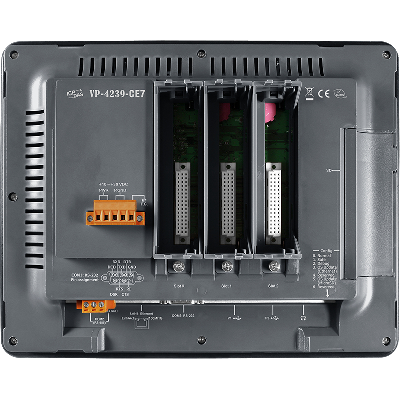

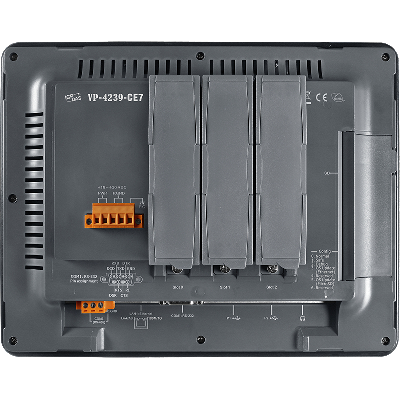

I/O Expansion Slots
Slot Number: 3 (For High Profile I-8K and I-87K Modules Only)
Dimensions (W x L x H): 293 mm x 231 mm x 129 mm
Ingress Protection: Front panel: IP65
Operating Temperature: -20 °C ~ +70 °C
Storage Temperature: -30 °C ~ +80 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
Input Range: +10 VDC ~ +30 VDC
Isolation: 1 kV
Capacity: 2.5 A, 5 V supply to I/O expansion slots
Consumption: 8.5 W
